Engine Control System - Fuel System (G6EA-GSL 2.7L)
>>
Fuel Tank Pressure Sensor (Ftps)
>>
Description
>>
Schematic Diagram
Schematic Diagram

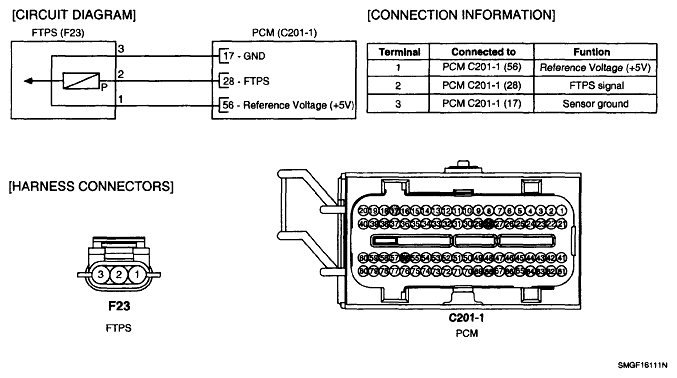

Fig 1: Fuel Tank Pressure Sensor - Circuit Diagram
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
