Home >> Kia >> 2007 >> Sorento Base, A5SR2 >> Repair and Diagnosis >> Quick Lookups >> Wiring Diagrams >> OEM Connector End Views >> Connector End Views >> KAB Driver Connector End Views

KAB Driver Connector End Views

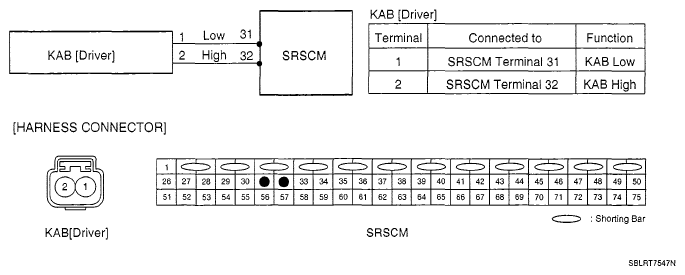

Fig 1: KAB Driver Connector End Views
G05119550Courtesy of KIA MOTORS AMERICA, INC.
