Home >> Kia >> 2007 >> Sorento Base, A5SR2 >> Repair and Diagnosis >> Quick Lookups >> Wiring Diagrams >> OEM Connector End Views >> Connector End Views >> BS Passenger Connector End View

BS Passenger Connector End View

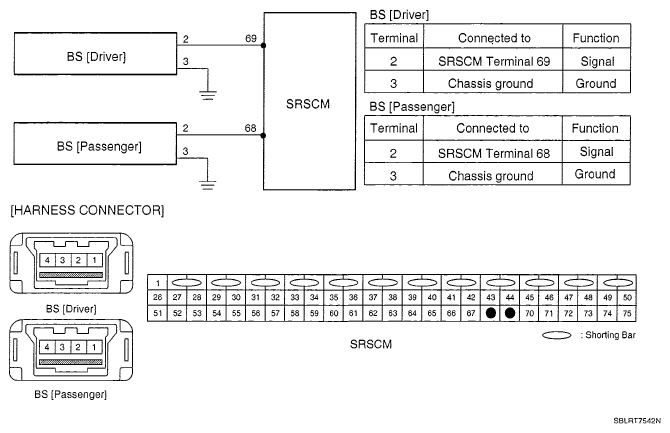

Fig 1: BS Passenger Connector End View

G05119543

Courtesy of KIA MOTORS AMERICA, INC.
