Component Inspection

WARNING: This page is about a different variant/trim than selected.
  1. Ignition "OFF".
  2. Disconnect "C106-3" connector.
  3. Measure the resistance between each terminal of the sensor.

    Specification :

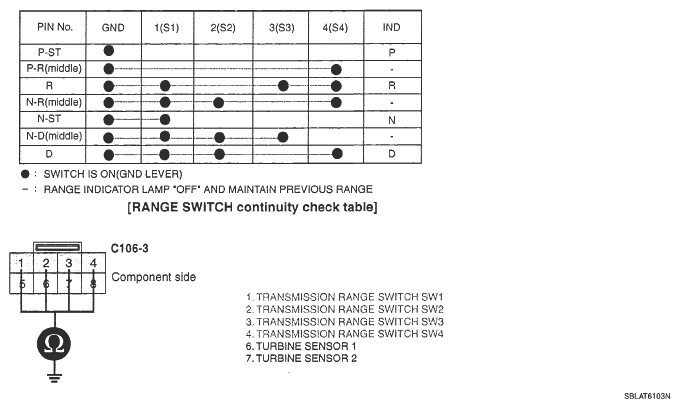

    Fig 1: Measuring Resistance Between Terminal Of Sensor
    G05119211Courtesy of KIA MOTORS AMERICA, INC.
  4. Is resistance within specifications?

    YES

    • Thoroughly check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration, or damage. Repair or replace as necessary and then go to "VERIFICATION OF VEHICLE REPAIR " procedure.

    NO

    • Check for open or short in harness. Repair as necessary and Go to "VERIFICATION OF VEHICLE REPAIR " procedure. If signal circuit in harness is OK, Substitute with a known-good "TRANSMISSION RANGE SWITCH" and check for proper operation. If the problem is corrected, replace "TRANSMISSION RANGE SWITCH" as necessary and go to "VERIFICATION OF VEHICLE REPAIR " procedure.
