Schematic Diagram

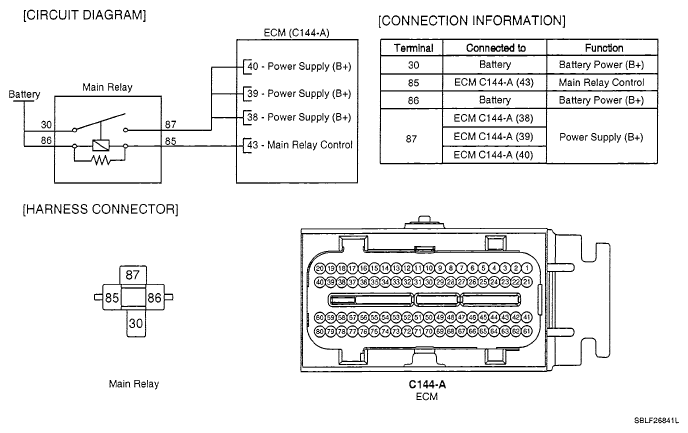

Fig 1: ECM/PCM Power Relay Control Circuit /OPEN - Schematic Diagram

G05119013

Courtesy of KIA MOTORS AMERICA, INC.
