Schematic Diagram

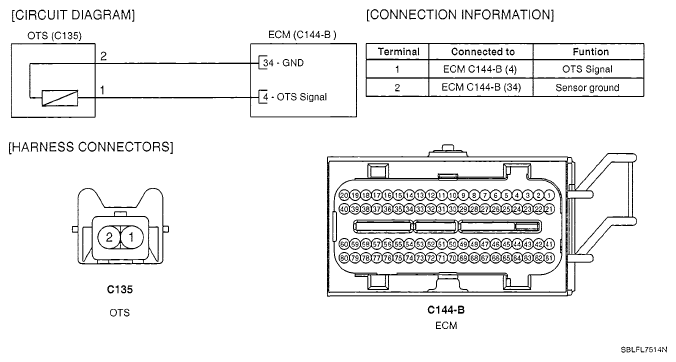

Fig 1: Oil Temperature Sensor Schematic Diagram

G05118486

Courtesy of KIA MOTORS AMERICA, INC.
