Monitor Scan Tool Data

Connect scan tool to Data Link Connector (DLC).
Ignition "ON" & Engine "ON".
Monitor the "SAS CALIBRATED" parameters on the Scan tool.
Specification : YES

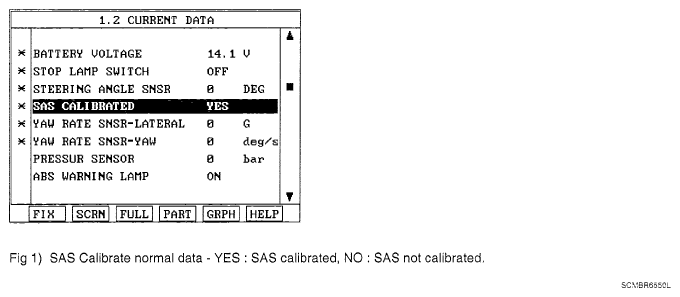

Fig 1: Scan Tool Display - SAS Calibrated
Courtesy of KIA MOTORS AMERICA, INC.
Is parameter displayed within specifications?
YES
- Fault is caused by having been repaired and HECU memory was not cleared. Clear the DTC and then go to "VERIFICATION OF VEHICLE REPAIR " procedure.
NO
- Go to "COMPONENT INSPECTION " procedure.
