Mechanical Power Steering System: Components

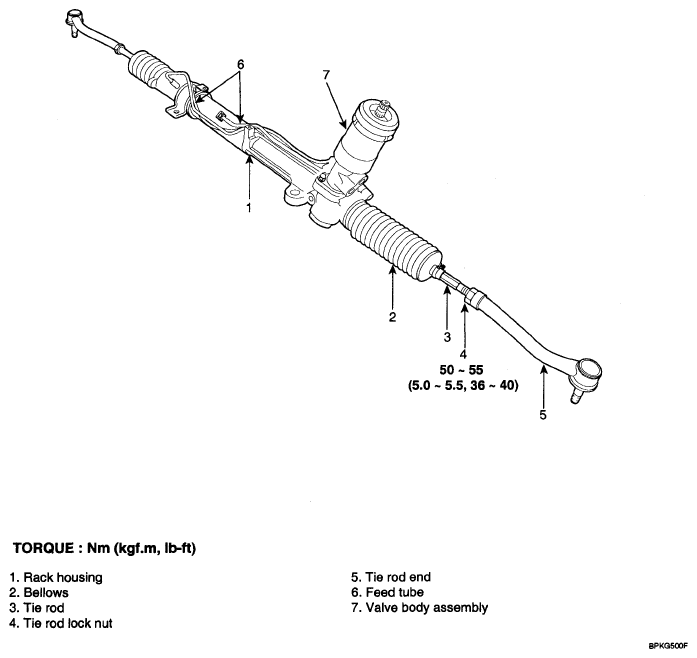

Fig 1: Mechanical Power Steering System Replacement Components With Torque Specifications

G04882646

Courtesy of KIA MOTORS AMERICA, INC.
