Home >> Kia >> 2007 >> Sedona Base >> Repair and Diagnosis >> Accessories & Equipment >> Cruise Control Systems >> Cruise Control Main Switch >> Circuit Diagram

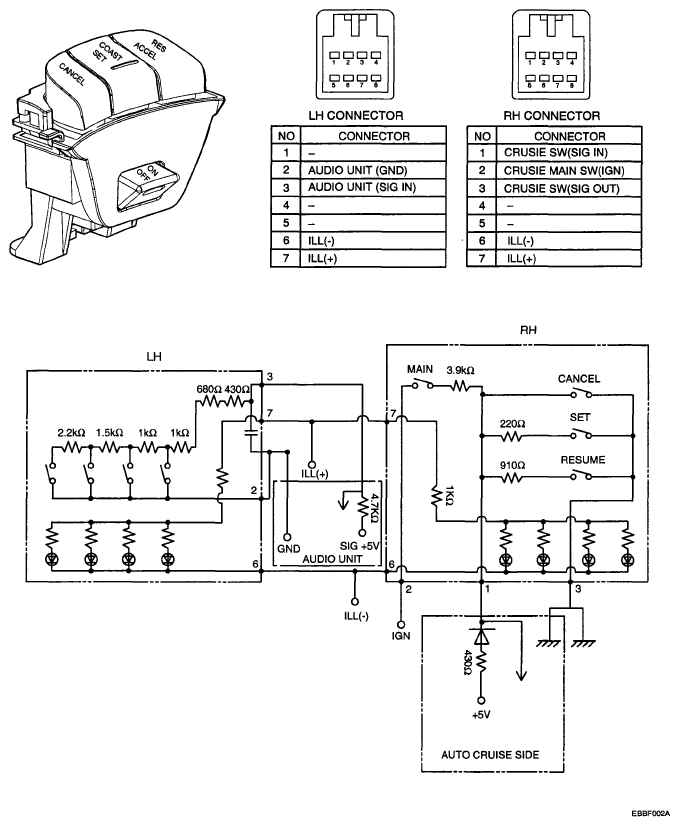

Circuit Diagram

G04882124

Courtesy of KIA MOTORS AMERICA, INC.
