Power Steering Oil Pump: Reassembly

Assemble a new O-ring to the connector assembly (A).

Fig 1: Identifying O-Ring
Courtesy of KIA MOTORS AMERICA, INC.
Insert the spring and flow control valve (B) into the pump body and then tighten the connector assembly (A).
Tightening torque N.m (kgf.m, lb-ft):

70-80 (7.0-8.0, 51-58)

Fig 2: Identifying Connector Assembly And Control Valve
Courtesy of KIA MOTORS AMERICA, INC.
Assemble new O-rings (A) to the pump body.

Fig 3: Identifying O-Rings
Courtesy of KIA MOTORS AMERICA, INC.
Insert the side plate (A) into the pump body.

Fig 4: Identifying Side Plate
Courtesy of KIA MOTORS AMERICA, INC.

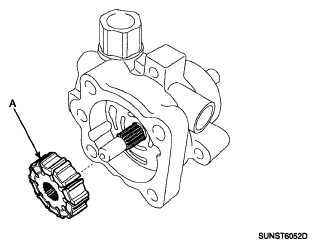

Assemble the rotor (A) to pump.

Fig 5: Identifying Rotor
Courtesy of KIA MOTORS AMERICA, INC.
Assemble the vanes (B) to the rotor (B) grooves.

Fig 6: Identifying Vanes At Rotor
Courtesy of KIA MOTORS AMERICA, INC.
Insert the cam ring (A) into the pump body.

Fig 7: Identifying Cam Ring
Courtesy of KIA MOTORS AMERICA, INC.

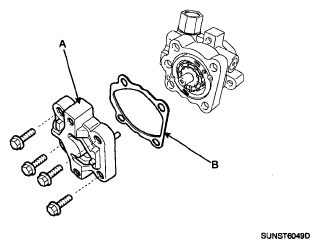

Assemble a new gasket (B) and pump cover (A) to the pump body and then tighten the mounting bolts.
Tightening torque N.m (kgf.m, lb-ft):

15-20 (1.6-2.0, 11-15)

Fig 8: Identifying Pump Cover And Gasket
Courtesy of KIA MOTORS AMERICA, INC.

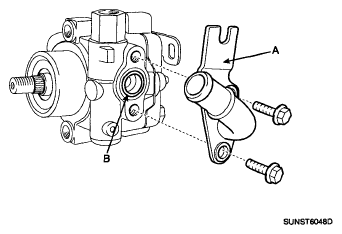

Assemble a new O-ring (B) and suction pipe (A) and then tighten the mounting bolts.

Fig 9: Identifying Suction Tube And O-Ring
Courtesy of KIA MOTORS AMERICA, INC.

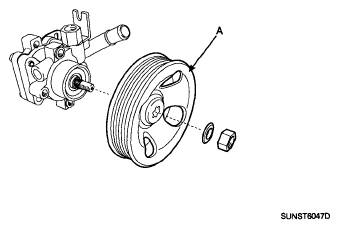

Assemble the pump pulley (A) to pump shaft and then tighten the nut and spring washer together.
Tightening torque N.m (kgf.m, lb-ft):

54-68, 5.5-6.9, 40-50

Fig 10: Identifying Pump Pulley
Courtesy of KIA MOTORS AMERICA, INC.
