Component Inspection

WARNING: This page is about a different variant/trim than selected.
  1. CHECK "TRANSAXLE FLUID TEMPERATURE SENSOR"
    1. Ignition "OFF".
    2. Disconnect the "TRANSAXLE FLUID TEMPERATURE SENSOR" connector.
    3. Measure the resistance between terminals "1" and "2" of the "TRANSAXLE FLUID TEMPERATURE SENSOR".

      Specification : Refer to "REFERENCE DATA "

      Fig 1: Measuring Resistance Between Transaxle Fluid Temperature Sensor Terminals
      G05186569Courtesy of KIA MOTORS AMERICA, INC.

      [REFERENCE DATA]

      RESISTANCE SPECIFICATIONS

      TEMP.[°C (°F)] Resistance (kΩ) TEMP.[°C (°F)] Resistance (kΩ)
      -40 (-40) 139.5 80 (176) 1.08
      -20 (-4) 47.7 100 (212) 0.63
      0 (32) 18.6 120 (248) 0.38
      20 (68) 8.1 140 (284) 0.25
      40 (104) 3.8 160 (320) 0.16
      60 (140) 1.98
    4. Is resistance within specifications?

      YES

      • Go to  2"CHECK PCM/TCM" as below.

      NO

  2. CHECK TCM
    1. Ignition "ON" & Engine "OFF".
    2. Connect "TRANSAXLE FLUID TEMPERATURE SENSOR" connector.
    3. Install scan tool and select a SIMU-SCAN.
    4. Simulate voltage (0→5V) to "TRANSAXLE FLUID TEMPERATURE SENSOR" signal circuit.

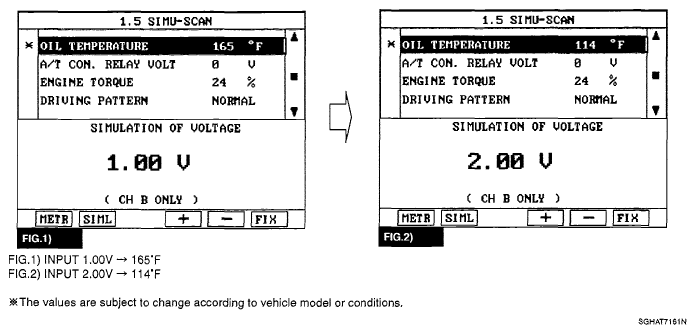

      Fig 2: Monitor Scantool Data - SIMU-SCAN
      G05116666Courtesy of KIA MOTORS AMERICA, INC.

      * The values are subject to change according to vehicle model or conditions.

    5. Is FLUID TEMP. SENSOR signal value changed according to simulation voltage?

      YES

      • Thoroughly check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration, or damage. Repair or replace as necessary and then go to "VERIFICATION OF VEHICLE REPAIR " procedure.

      NO

      • Substitute with a known-good PCM/TCM and check for proper operation. If the problem is corrected, replace PCM/TCM as necessary and then go to "VERIFICATION OF VEHICLE REPAIR " procedure.
