Signal Circuit Inspection

WARNING: This page is about a different variant/trim than selected.

Measure resistance between each terminal of the sensor harness connector and TCM (PCM) harness connector as below.

Specification :

RESISTANCE SPECIFICATIONS

Pin No of "TRANSAXLE RANGE SWITCH"	C438 No.1	C438 No.3	C438 No.4	C438 No.7
Pin No of "TCM (PCM)" harness	C401-A NO.6	C401-A NO.3	C401-A NO.5	C401-A NO.4
Specification	0Ω	0Ω	0Ω	0Ω

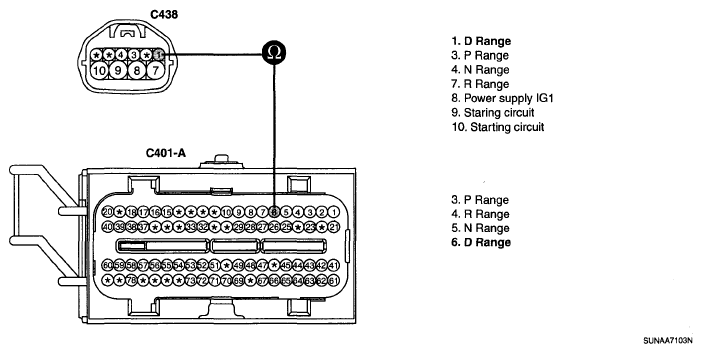

Fig 1: Measuring Resistance Between Each Terminal Of Sensor Harness Connector And TCM (PCM) Harness Connector

Courtesy of KIA MOTORS AMERICA, INC.

Is resistance within specifications?
YES
- Go to "COMPONENT INSPECTION " procedure.
NO
- Check for Open in harness. Repair as necessary and Go to "VERIFICATION OF VEHICLE REPAIR " procedure.
