Control Circuit Inspection

  1. With ignition OFF, disconnect alternator connector
  2. Ignition "ON" & Engine "OFF"
  3. Measure voltage between terminals 3 of the alternator harness connector and chassis ground

    Specification : Approx. 9~10V

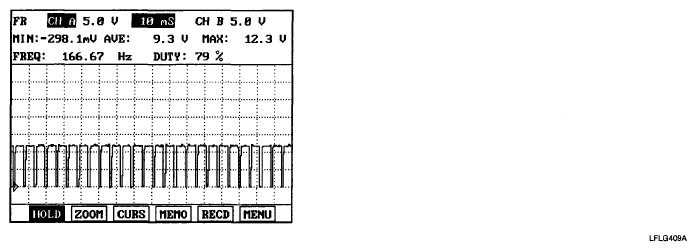

    NOTE: Normal waveform with ignition "ON"
    Fig 1: Identifying Signal Waveform
    G04804384
  4. Is voltage within the specification?

    YES

    NO
