Schematic Diagram

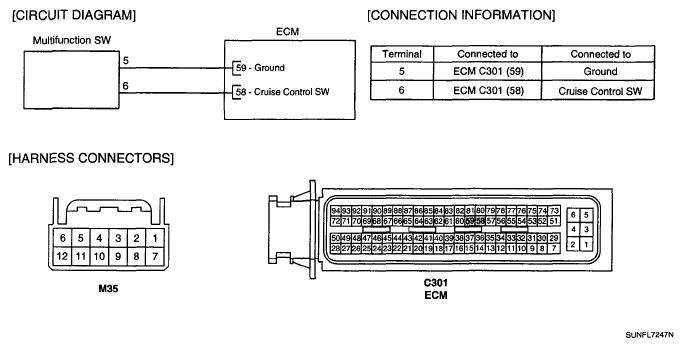

Fig 1: Cruise Control Multi-Function Input "A" Circuit - Schematic Diagram

G05182168
