Evaporative And ORVR Emission Control System: Components

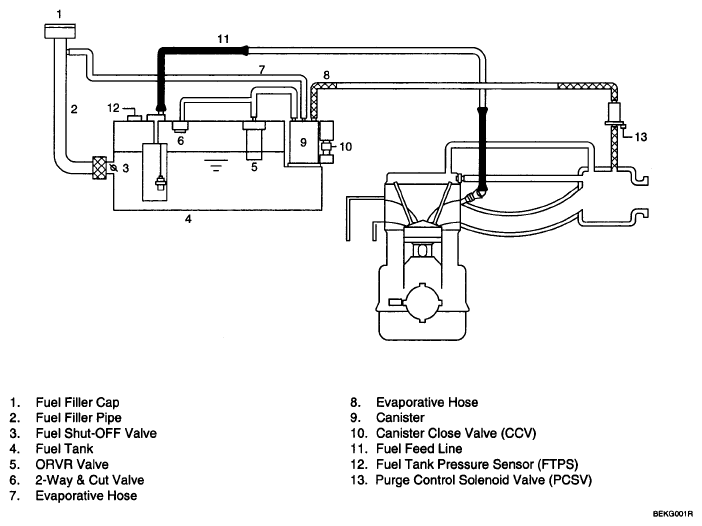

Fig 1: Identifying Evaporative And Emission Control System
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
