Power Circuit Inspection

Ignition "ON" & Engine "OFF".
Measure voltage between terminal "6" of the steering wheel angle sensor harness connector and chassis ground.
Specification : Approx. B+

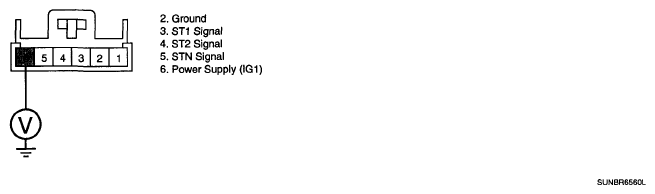

Fig 1: Measuring Voltage Between Terminal "6" Of Steering Wheel Angle Sensor Connector Ground
Courtesy of KIA MOTORS AMERICA, INC.
Is the measured voltage within specifications?
YES
- Go to "GROUND CIRCUIT INSPECTION " procedure.
NO
- Check for open or blown 10A fuse referring to "CIRCUIT DIAGRAM ". Repair as necessary and then go to "VERIFICATION OF VEHICLE REPAIR " procedure.
- If OK, check for open or short to GND in steering angle sensor harness between the battery terminal (+) and terminal "6" of the steering angle sensor harness connector. Repair as necessary and then go to "VERIFICATION OF VEHICLE REPAIR " procedure.
