Monitor SCANTOOL Data

Connect scantool to Data Link Connector (DLC).
Ignition "ON" & Engine "ON".
Press the brake pedal.
Monitor the "Pressure sensor" parameter on the Scantool.
Specification : Approx. 60bar ~ 150bar (There is difference in displayed parameter according to braking force)

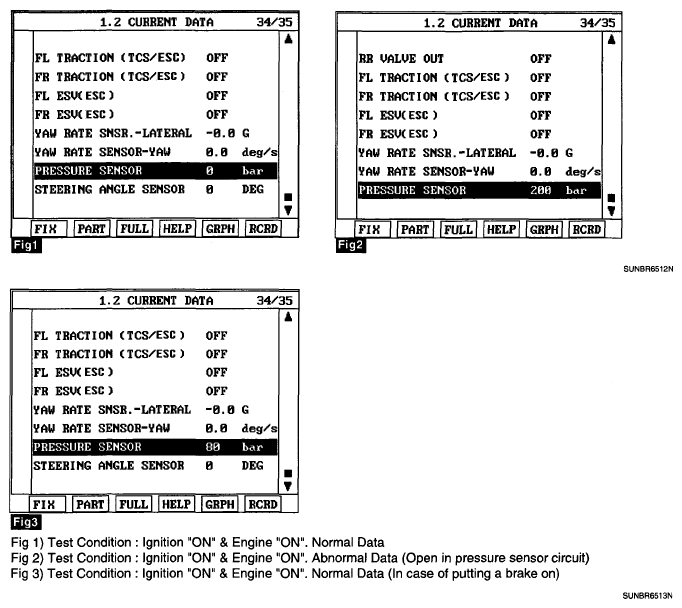

Fig 1: Scantool Screen Display - CURRENT DATA
Courtesy of KIA MOTORS AMERICA, INC.
Whenever brake pedal is pushed down, is the pressure sensor's scantool data changed?
YES
- Fault is caused by having been repaired and HECU memory was not cleared. Clear the DTC and then go to "VERIFICATION OF VEHICLE REPAIR " procedure.
NO
- Go to "TERMINAL AND CONNECTOR INSPECTION " procedure.
