Manual Transaxle: Disassembly

Remove the vehicle speed sensor (A). (Bolt: 1EA)

Fig 1: Locating Vehicle Speed Sensor
Courtesy of KIA MOTORS AMERICA, INC.
Remove the release cylinder (A) tube from the release cylinder.
Remove the release cylinder from the transaxle. (Bolt: 2EA)

Fig 2: Locating Release Cylinder
Courtesy of KIA MOTORS AMERICA, INC.
Remove the release bearing (A) and clutch fork (B).

Fig 3: Locating Release Bearing And Clutch Fork
Courtesy of KIA MOTORS AMERICA, INC.
Remove the clutch fork boot (A).

Fig 4: Locating Clutch Fork Boot
Courtesy of KIA MOTORS AMERICA, INC.
Remove the shift cable bracket (A). (Bolt:2EA)

Fig 5: Locating Shift Cable Bracket
Courtesy of KIA MOTORS AMERICA, INC.
Remove the control shift complete (A) from the transaxle case. (Bolt:6EA)

Fig 6: Locating Control Shift
Courtesy of KIA MOTORS AMERICA, INC.
Remove the shift rail poppet bolt (A) (3EA).

Fig 7: Locating Shift Rail Poppet Bolt
Courtesy of KIA MOTORS AMERICA, INC.
Remove the drain plug (A).

Fig 8: Locating Drain Plug
Courtesy of KIA MOTORS AMERICA, INC.
Remove the filler plug (A).

Fig 9: Locating Filler Plug
Courtesy of KIA MOTORS AMERICA, INC.
Remove the reverse idle bolt (A) from the transaxle case.

Fig 10: Locating Reverse Idle Bolt
Courtesy of KIA MOTORS AMERICA, INC.
Remove the housing bolt (3EA) from the clutch housing inside.

Fig 11: Locating Housing Bolts
Courtesy of KIA MOTORS AMERICA, INC.

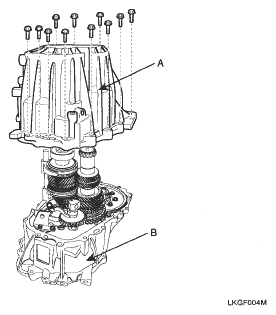

Remove the transaxle case (A) from the housing (B). (Bolt: 11EA)

Fig 12: Identifying Transaxle Case And Housing
Courtesy of KIA MOTORS AMERICA, INC.
Remove the differential outer race (A).

Fig 13: Locating Differential Outer Race
Courtesy of KIA MOTORS AMERICA, INC.
Remove the output outer race (A).

Fig 14: Locating Output Outer Race
Courtesy of KIA MOTORS AMERICA, INC.
Remove the input shaft oil guide (A) in the transaxle case.

Fig 15: Locating Input Shaft Oil Guide
Courtesy of KIA MOTORS AMERICA, INC.
Remove the oil guide (A).

Fig 16: Locating Oil Guide
Courtesy of KIA MOTORS AMERICA, INC.
Remove the bushing (A) (3EA).

Fig 17: Locating Bushings
Courtesy of KIA MOTORS AMERICA, INC.
Remove the drive shaft oil seal (A).

Fig 18: Locating Drive Shaft Oil Seal
Courtesy of KIA MOTORS AMERICA, INC.
Remove the reverse idle gear assembly (A).

Fig 19: Locating Reverse Idle Gear Assembly
Courtesy of KIA MOTORS AMERICA, INC.
Remove the reverse shaft lever assembly (A). (Bolt: 2EA)

Fig 20: Locating Reverse Shaft Lever Assembly
Courtesy of KIA MOTORS AMERICA, INC.
Remove the spring pin.
NOTE: Be careful not to damage it when removing spring pin.

Fig 21: Removing/Installing Spring Pin
Courtesy of KIA MOTORS AMERICA, INC.
Remove the shift rail and fork assembly.

Fig 22: Identifying Shift Rail And Fork Assembly
Courtesy of KIA MOTORS AMERICA, INC.
Remove the bearing retainer (A). (Bolt: 4EA)

Fig 23: Locating Bearing Retainer
Courtesy of KIA MOTORS AMERICA, INC.
Remove the input shaft (A) and output shaft (B) assembly together from the clutch housing.

Fig 24: Locating Input Shaft And Output Shaft
Courtesy of KIA MOTORS AMERICA, INC.
Remove the differential assembly (A).

Fig 25: Locating Differential Assembly
Courtesy of KIA MOTORS AMERICA, INC.
Remove the differential oil seal (A).

Fig 26: Locating Differential Oil Seal
Courtesy of KIA MOTORS AMERICA, INC.
Remove the clutch release lever fulcrum bolt (A).

Fig 27: Locating Clutch Release Lever Fulcrum Bolt
Courtesy of KIA MOTORS AMERICA, INC.
Remove the differential outer race (A).

Fig 28: Locating Differential Outer Race
Courtesy of KIA MOTORS AMERICA, INC.
Remove the output shaft outer race (A).

Fig 29: Locating Output Shaft Outer Race
Courtesy of KIA MOTORS AMERICA, INC.
Remove the magnetic (A).

Fig 30: Locating Magnetic
Courtesy of KIA MOTORS AMERICA, INC.
Remove the output shaft oil guide (A).

Fig 31: Locating Output Shaft Oil Guide
Courtesy of KIA MOTORS AMERICA, INC.
Remove the dowel pin (3EA).

Fig 32: Identifying Dowel Pin
Courtesy of KIA MOTORS AMERICA, INC.
Remove the input shaft front oil seal (A).

Fig 33: Locating Input Shaft Front Oil Seal
Courtesy of KIA MOTORS AMERICA, INC.
Remove the bushing (3EA) from the clutch housing.

Fig 34: Identifying Bushing
Courtesy of KIA MOTORS AMERICA, INC.
