Home >> Kia >> 2007 >> Rio Base, Standard >> Repair and Diagnosis >> Transmission >> Clutch >> Clutch System >> Components

Clutch System: Components

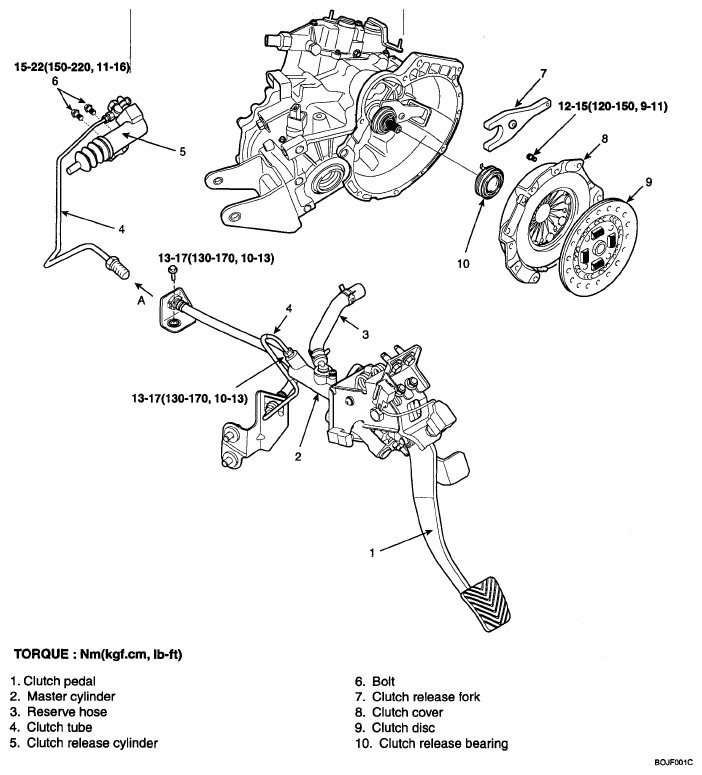

Fig 1: Clutch System Replacement Components With Torque Specifications

G04862394

Courtesy of KIA MOTORS AMERICA, INC.
