Inspection And Adjustment Before Disassembly: Notes

Fix a brass plate or aluminum plate for protection to the jaws of a vise and mount the gear box (A) in a vise (B).

CAUTION: When mounting the gear box in a vise, let the installation section of it be fixed to the jaws. If other section is fixed the gear box may be damaged.

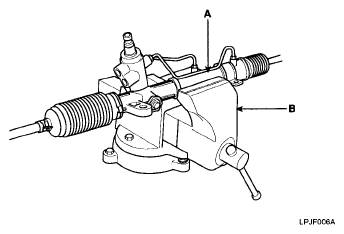

Fig 1: Mounting Steering Gear Box In Vise
G04862933Courtesy of KIA MOTORS AMERICA, INC.
