Intake Actuator: Replacement

  1. Disconnect the negative (-) battery terminal.
  2. Remove the glove box (Refer to INTERIOR ).
  3. Disconnect the intake actuator connector.
  4. Loosen the mounting screw and then remove the intake actuator (A) from the blower unit.

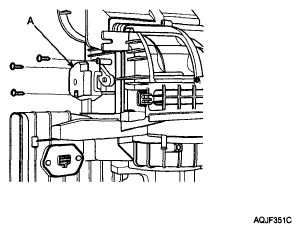

    Fig 1: Identifying Intake Actuator From Blower Unit
    G04863915Courtesy of KIA MOTORS AMERICA, INC.
  5. Install in reverse order of removal.
