Front Washer Motor: Replacement

WARNING: This page is about a different car, the 2007 Kia Sedona and 2006 Kia Sedona. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative (-) battery terminal.
  2. Remove the front bumper cover. (Refer to FRONT BUMPER )
  3. Remove the washer hose, the washer motor connector (A) and washer level sensor connector (C).
  4. Remove the washer reservoir after removing 2 bolts and 1 step bolt.

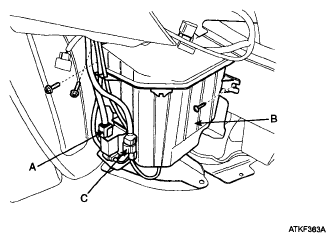

    Fig 1: Identifying Washer Motor Connector And Washer Level Sensor Connector
    G04885107Courtesy of KIA MOTORS AMERICA, INC.
  5. Installation is the reverse of removal.
