Front Hub / Knuckle: Components

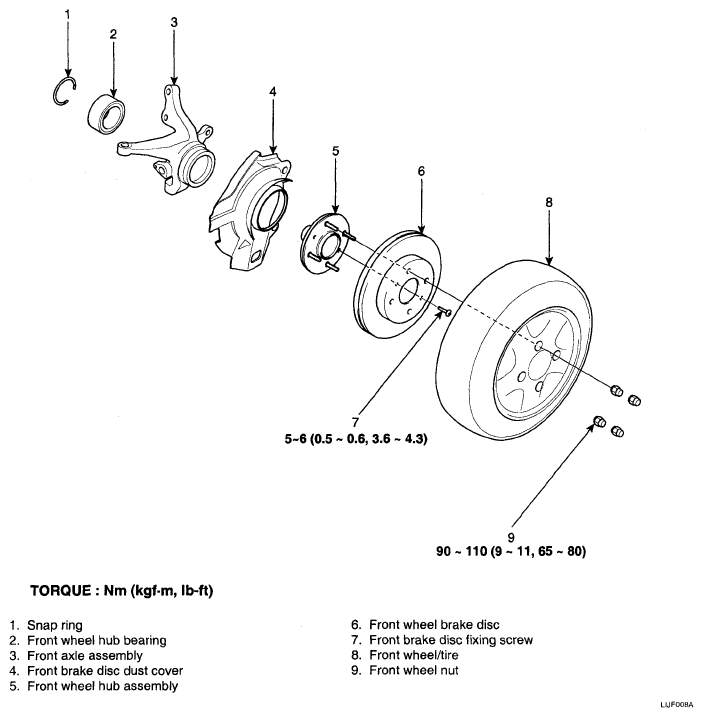

Fig 1: Identifying Front Hub/Knuckle Components Location

G04862748

Courtesy of KIA MOTORS AMERICA, INC.
