Monitor SCANTOOL Data

Connect scantool to data link connector (DLC)
Engine "ON".
Monitor the "TCC SOL. VALVE" parameter on the scantool
Select "D RANGE" and Operate "TCC SOLENOID DUTY" more than 40%.

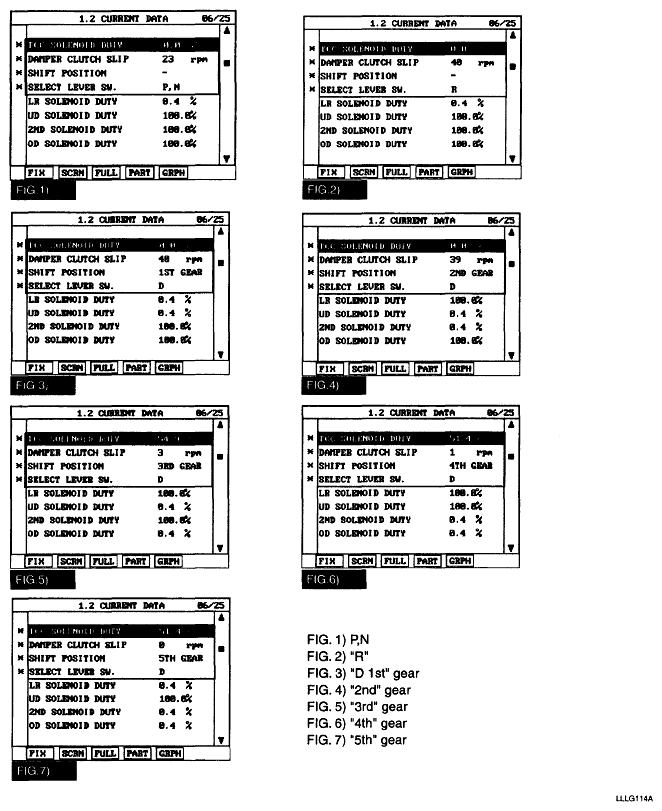

Fig 1: Display Screen Of - TCC Solenoid Duty
Courtesy of KIA MOTORS AMERICA, INC.
Is "TCC SOLENOID DUTY" follow the reference data?
YES : --> Fault is intermittent caused by poor contact in the sensor's and/or TCM (PCM)'s connector or was repaired and TCM (PCM) memory was not cleared. Thoroughly check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration or damage. Repair or replace as necessary and go to "VERIFICATION OF VEHICLE REPAIR " procedure.

NO : --> Go to "TERMINAL & CONNECTOR INSPECTION " procedure.
