Component Inspection

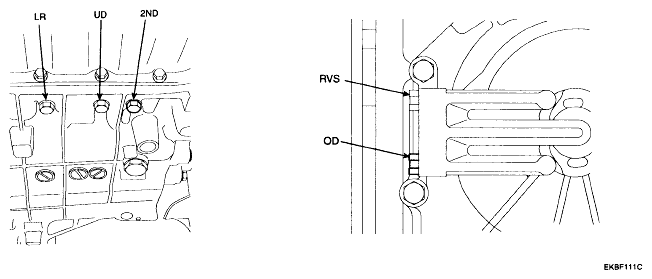

- Connect oil pressure gauge to "OD" and "2nd" and "DIR" port.
- Engine "ON".
- Drive a car with gear position "5".
- Compare it with reference data as below.
Specification: refer to Standard Oil Pressure Table (Refer to DTC P0731 )
- Is oil pressure value within specification?
YES : --> Repair AUTO TRANSAXLE (Clutch or Brake) as necessary and Go to "VERIFICATION OF VEHICLE REPAIR " procedure.
NO : --> Replace AUTO TRANSAXLE (BODY CONTROL VALVE faulty) as necessary and Go to "VERIFICATION OF VEHICLE REPAIR " procedure.
