Component Inspection

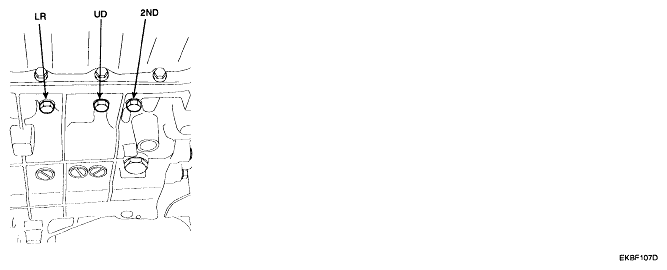

Fig 1: Identifying Oil Pressure Gauge Port

Courtesy of KIA MOTORS AMERICA, INC.

Connect oil pressure gauge to "UD" and "L/R" and "RED" port.
Engine "ON".
Drive a car with gear position 1 in "SPORTS MODE".

Compare it with reference data as below.

Specification: refer to STANDARD OIL PRESSURE Table as below

OIL PRESSURE SPECIFICATION CHART

LEVER POSITION

INPUT SPEED

VFS CURRENT

SOLENOID VALVE DUTY (%)

ELEMENT

P (MPa)

DCC

2ND

RED⁽¹⁾

2500rpm

200mA

100

1.03±0.02

↑

0.52±0.04

↑

0.23±0.04

↑

100

↑

100

↑

100

2ND

1.03±0.02

↑

0.55±0.04

↑

0.22±0.04

↑

100

↑

100

↑

100

1.03±0.02

↑

0.52±0.04

↑

0.21 ±0.04

↑

100

↑

100

↑

100

1.03±0.02

↑

0.47±0.04

↑

0.17±0.04

↑

100

↑

100

↑

100

RED⁽¹⁾

1.03±0.02

↑

0.54±0.04

↑

0.27±0.04

↑

100

↑

100

↑

100

D/R⁽¹⁾

↑

0.27±0.04

↑

0.54±0.04

↑

1.03±0.02

↑

250mA

↑

100

1.55±0.25

⁽¹⁾	The values are subject to change according to vehicle model or condition.

Is oil pressure value within specifications?
YES : --> Repair AUTO TRANSAXLE (Clutch or Brake) as necessary and Go to "VERIFICATION OF VEHICLE REPAIR " procedure.

NO : --> Replace AUTO TRANSAXLE (BODY CONTROL VALVE faulty) as necessary and Go to "VERIFICATION OF VEHICLE REPAIR " procedure.
