Power Supply Circuit Inspection

CHECK POWER TO RANGE SWITCH
1. Disconnect "TRANSAXLE RANGE SWITCH" connector.
2. Ignition "ON" & Engine "OFF".
3. Measure voltage between terminal "8" of the sensor harness connector and chassis ground.
  Specifications: approx. B+

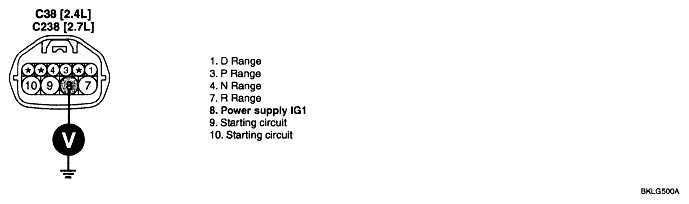

  Fig 1: Measuring Voltage Between Sensor Harness Connector And Chassis Ground
  Courtesy of KIA MOTORS AMERICA, INC.
4. Is voltage within specifications?
  YES : --> Go to "SIGNAL CIRCUIT INSPECTION " procedure.

  no : --> Check that Fuse 10A is installed or not blown.

  --> Check for open in harness. Repair as necessary and go to "VERIFICATION OF VEHICLE REPAIR " procedure.
