Stop Light Switch: Inspection

WARNING: This page is about a different car, the 2006 Lexus IS 350 and 2006 Lexus IS 250. However, it is still accessible from the selected car via links, so may be relevant.
  1. INSPECT STOP LIGHT SWITCH ASSEMBLY
    1. Remove the switch.
    2. Measure the resistance of the switch.

    Standard resistance

    SPECIFIED CONDITION AND TESTER CONNECTION

    Tester Connection Switch Condition Specified Condition
    1 - 2 Pushed 10 k ohms or higher
    1 - 2 Not pushed Below 1 ohms
    3 - 4 Pushed Below 1 ohms
    3 - 4 Not pushed 10 k ohms or higher

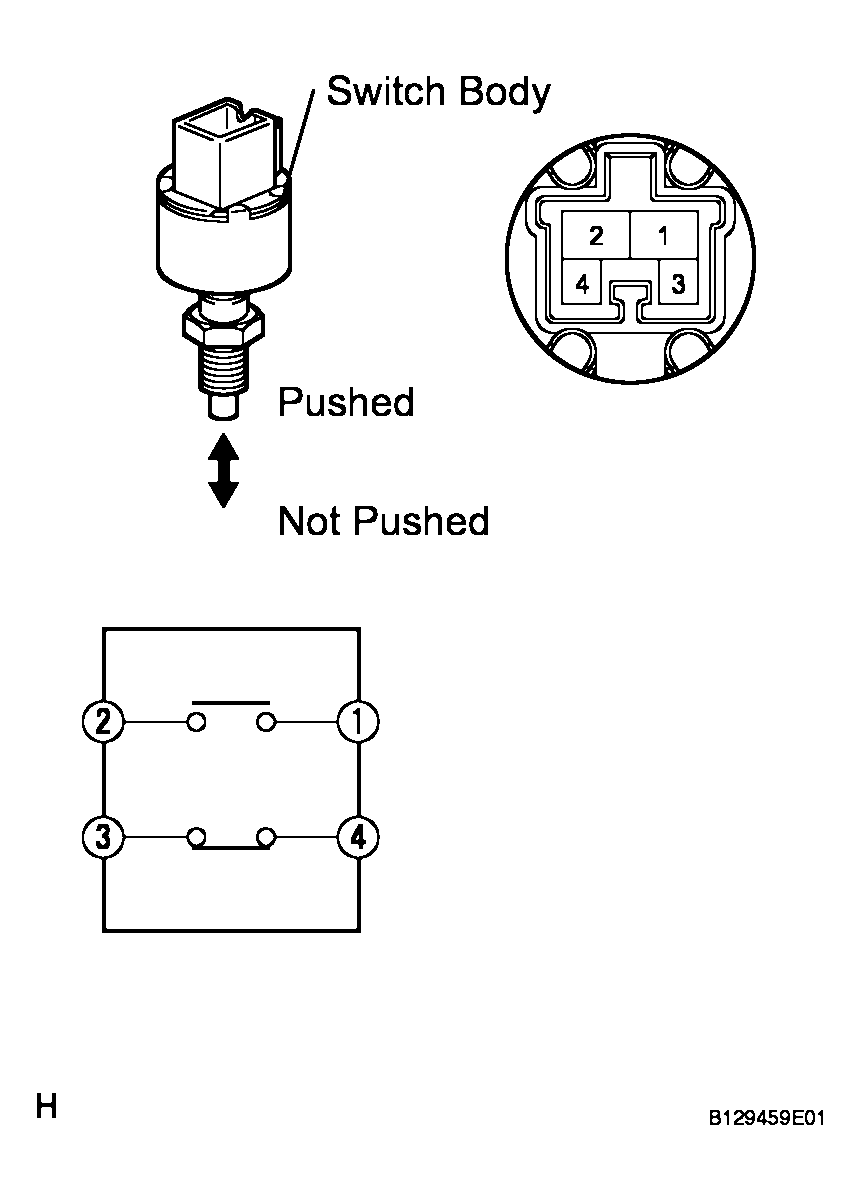

    Fig 1: Inspecting Stop Light Switch Assembly
    G04049629Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

    If the result is not as specified, replace the switch assembly.
