Rear Combination Light Assembly: Reassembly

WARNING: This page is about a different car, the 2006 Lexus IS 350 and 2006 Lexus IS 250. However, it is still accessible from the selected car via links, so may be relevant.
  1. INSTALL REAR LIGHT LENS
  2. INSTALL REAR LIGHT SOCKET AND WIRE
    1. Connect the connector.
    2. Install the rear light socket and wire.
  3. INSTALL BACK UP LIGHT BULB
    1. Install the back up light bulb.

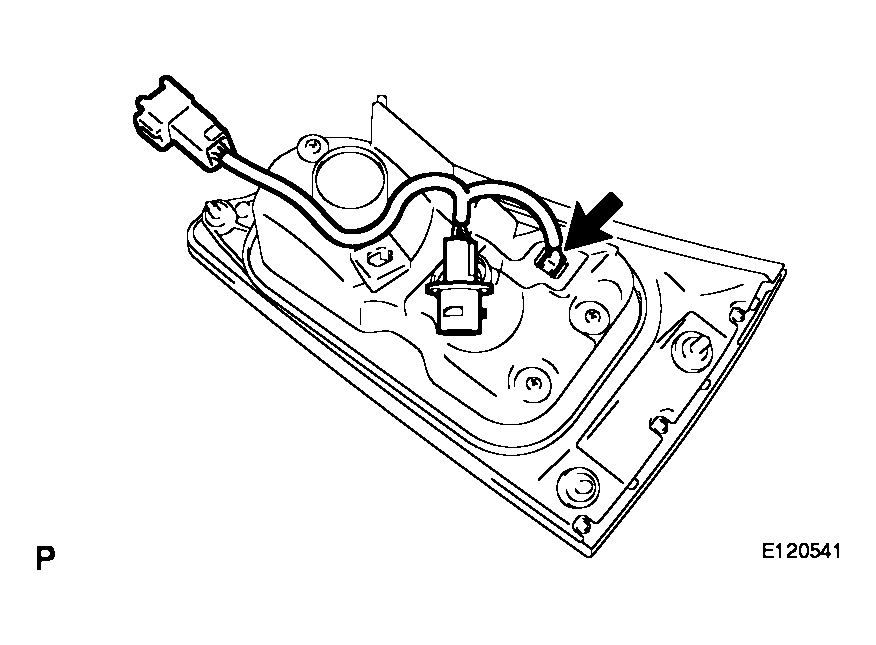

    Fig 1: Identifying Rear Light Socket And Wire
    G04049557Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
  4. INSTALL REAR COMBINATION LIGHT BODY GASKET
    1. Remove the release paper from a new rear combination light body gasket.

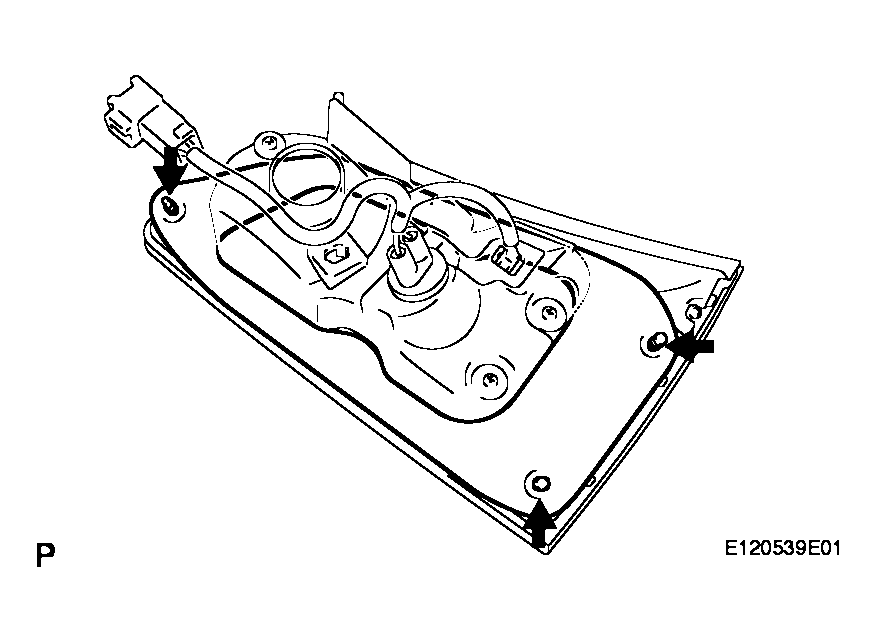

      Fig 2: Releasing Paper From Rear Combination Light Body Gasket
      G04049558Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
      NOTE:
      • Be sure to remove the all traces of the old gasket from the body.
      • Do not reuse the removed gasket. Be sure to install a new rear combination light body gasket to prevent water ingress.
    2. Align the rear combination light body gasket with the 3 stud bolts and install the gasket as shown in the illustration.
  5. INSTALL REAR COMBINATION LIGHT LENS AND BODY
  6. INSTALL REAR LIGHT SOCKET AND WIRE
    1. Connect the connector and install the rear light socket and wire.
  7. INSTALL REAR TURN SIGNAL LIGHT BULB
    1. Install the rear turn signal light bulb.
  8. INSTALL REAR COMBINATION LIGHT BODY GASKET
    1. Remove the release paper from a new rear combination light body gasket.

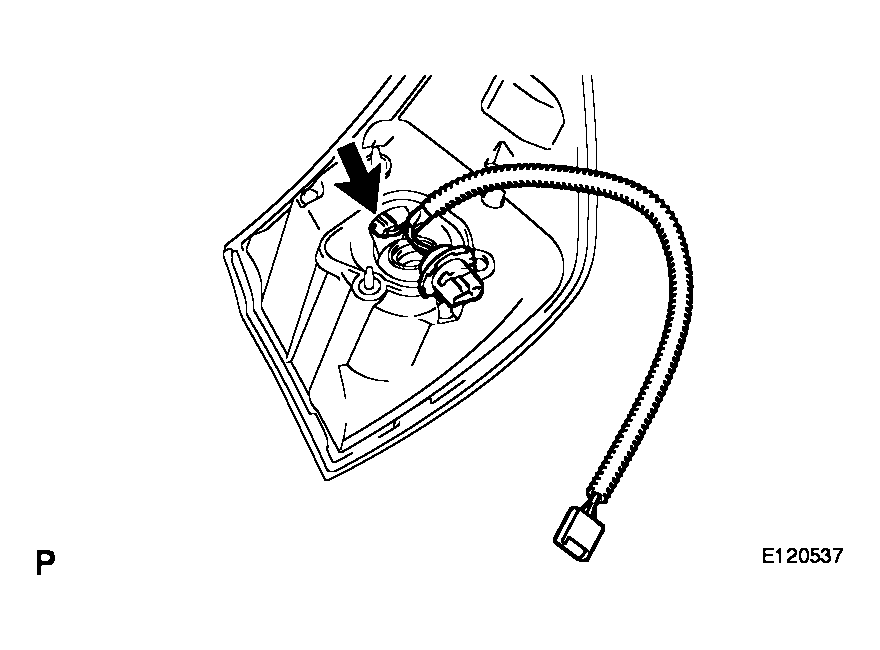

      Fig 3: Identifying Rear Light Socket And Wire
      G04049559Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
      NOTE:
      • Be sure to remove the all traces of the old gasket from the body.
      • Do not reuse the removed gasket. Be sure to install a new rear combination light body gasket to prevent water ingress.
    2. Align the rear combination light body gasket with the 3 stud bolts and install the gasket as shown in the illustration.

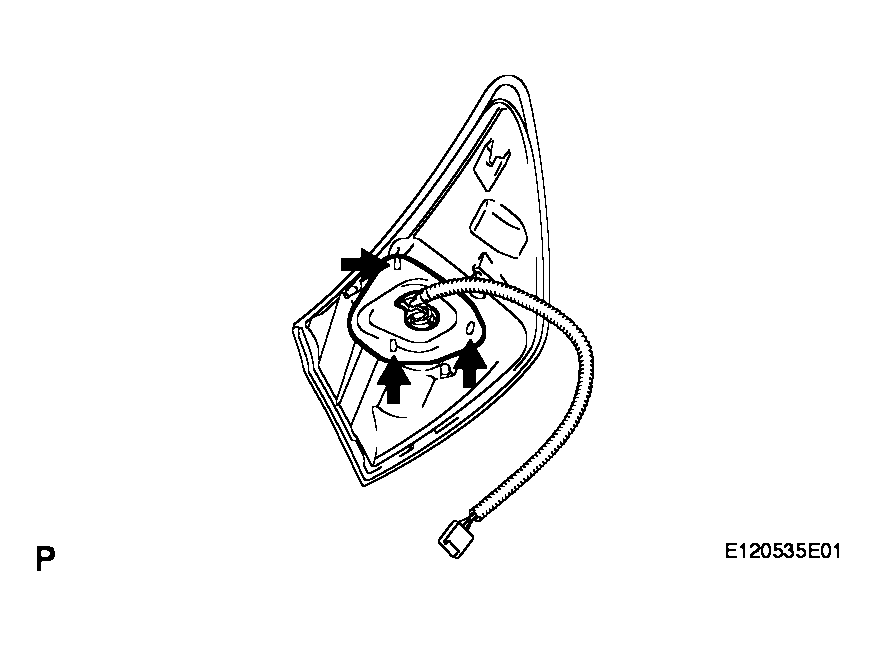

    Fig 4: Aligning Rear Combination Light Body Gasket With Stud Bolts
    G04049560Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
