Rear Combination Light Assembly: Disassembly

WARNING: This page is about a different car, the 2006 Lexus IS 350 and 2006 Lexus IS 250. However, it is still accessible from the selected car via links, so may be relevant.
  1. REMOVE REAR COMBINATION LIGHT BODY GASKET
    1. Remove the rear combination light body gasket.

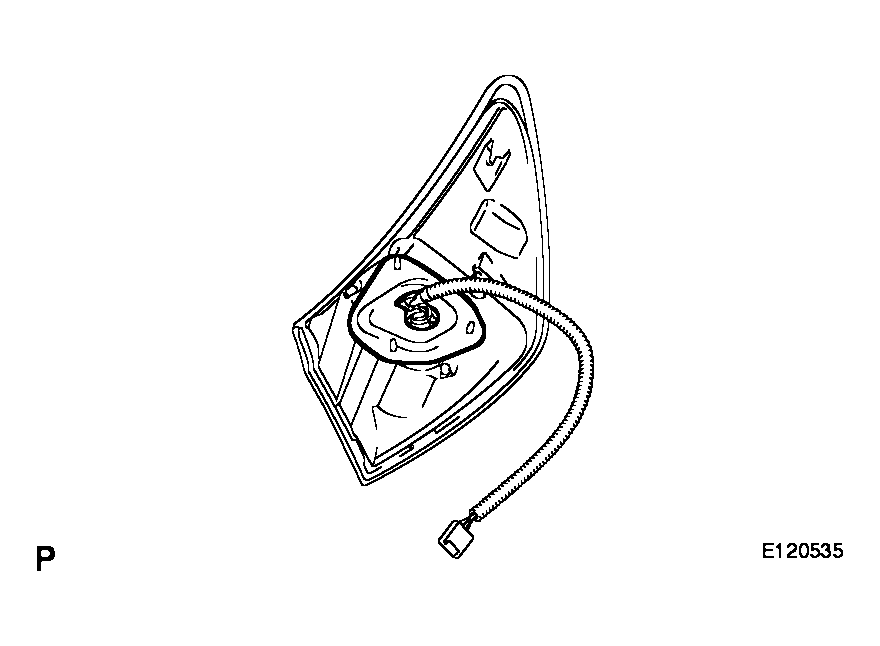

    Fig 1: Identifying Rear Combination Light Body Gasket
    G04049550Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
    NOTE:
    • Be sure to remove the all traces of the old gasket from the body.
    • Do not reuse the removed gasket. Be sure to install a new rear combination light body gasket to prevent water ingress.
  2. REMOVE REAR TURN SIGNAL LIGHT BULB
    1. Turn the rear turn signal light bulb and the rear light socket and wire in the direction indicated by the arrow and disconnect them as a unit.
    2. Remove the rear turn signal light bulb from the rear light socket and wire.

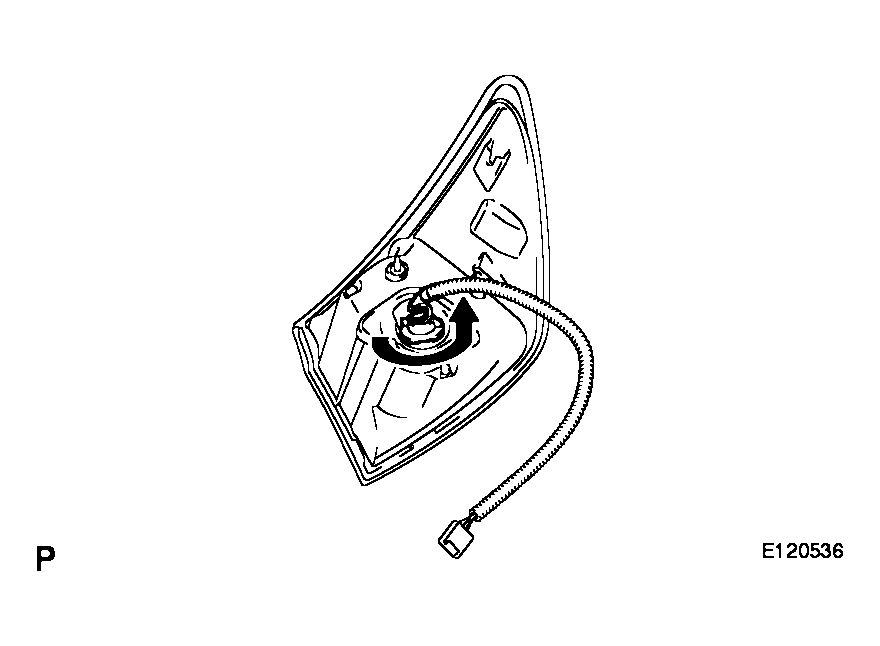

    Fig 2: Removing Rear Turn Signal Light Bulb From Rear Light Socket And Wire
    G04049551Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
  3. REMOVE REAR LIGHT SOCKET AND WIRE
    1. Disconnect the connector and remove the rear light socket and wire.
  4. REMOVE REAR COMBINATION LIGHT LENS AND BODY

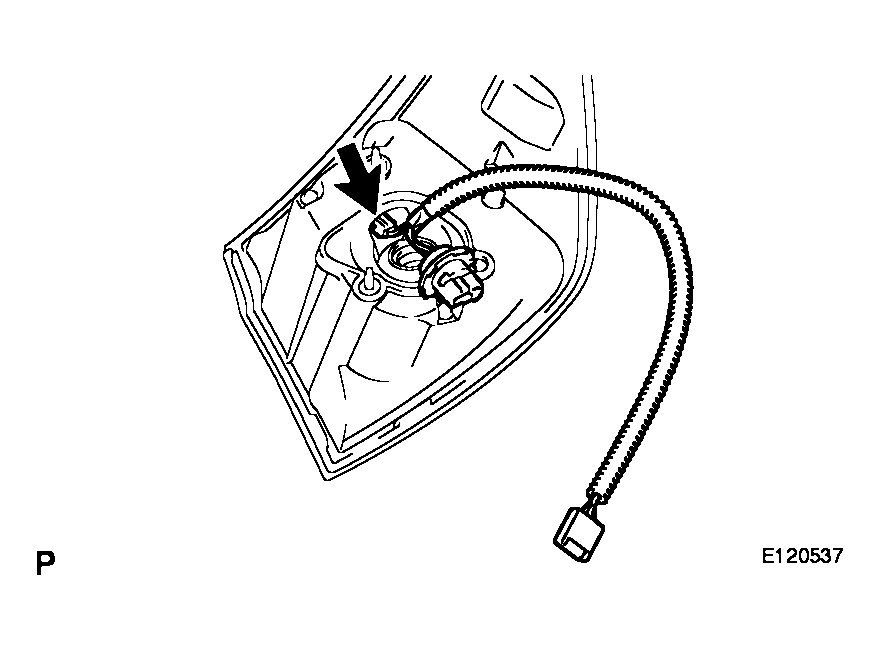

    Fig 3: Identifying Rear Light Socket And Wire
    G04049552Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
  5. REMOVE REAR COMBINATION LIGHT BODY GASKET
    1. Remove the rear combination light body gasket.

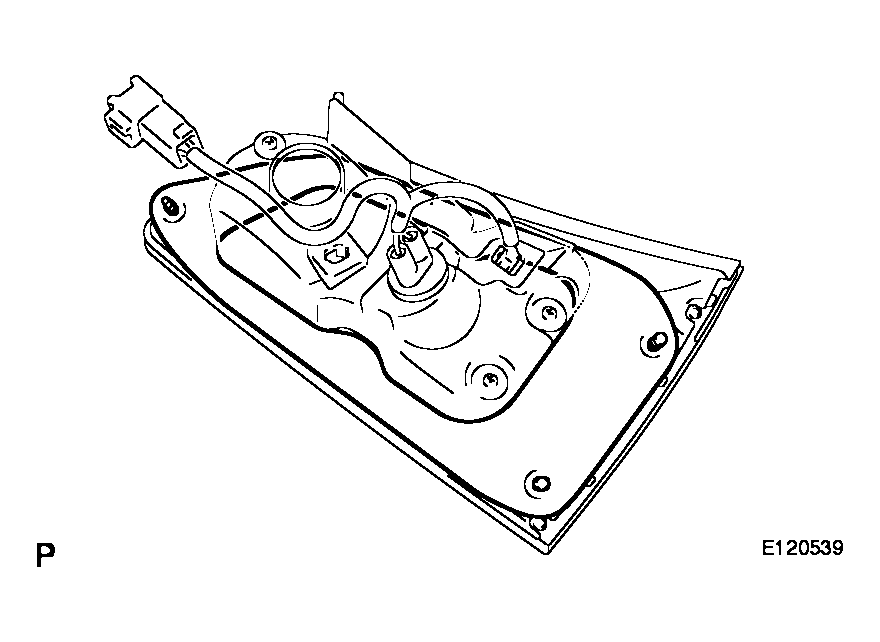

    Fig 4: Identifying Rear Combination Light Body Gasket
    G04049553Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
    NOTE:
    • Be sure to remove the all traces of the old gasket from the body.
    • Do not reuse the removed gasket. Be sure to install a new rear combination light body gasket to prevent water ingress.
  6. REMOVE BACK UP LIGHT BULB
    1. Turn the back up light bulb and the rear light socket and wire in the direction indicated by the arrow and remove them as a unit.
    2. Remove the back up light bulb from the rear light socket and wire.

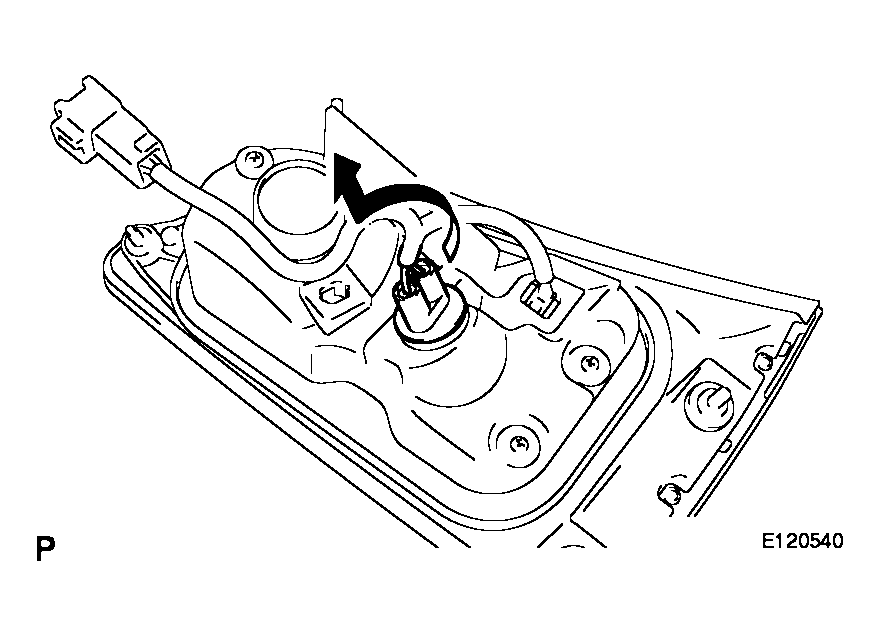

    Fig 5: Turning Back Up Light Bulb And Rear Light Socket And Wire
    G04049554Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
  7. REMOVE REAR LIGHT SOCKET AND WIRE
    1. Disconnect the connector.
    2. Remove the rear light socket and wire.
  8. REMOVE REAR LIGHT LENS

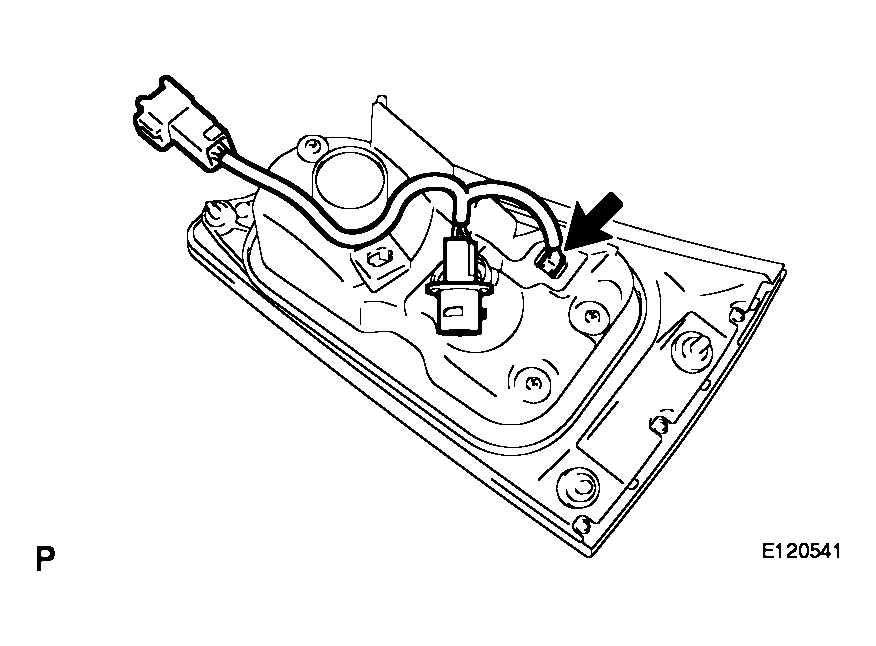

    Fig 6: Identifying Rear Light Socket And Wire
    G04049555Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
