Fog Light Assembly: Disassembly

WARNING: This page is about a different car, the 2006 Lexus IS 350 and 2006 Lexus IS 250. However, it is still accessible from the selected car via links, so may be relevant.
  1. REMOVE FOG LIGHT BULB
    1. Remove the fog light bulb as shown in the illustration.

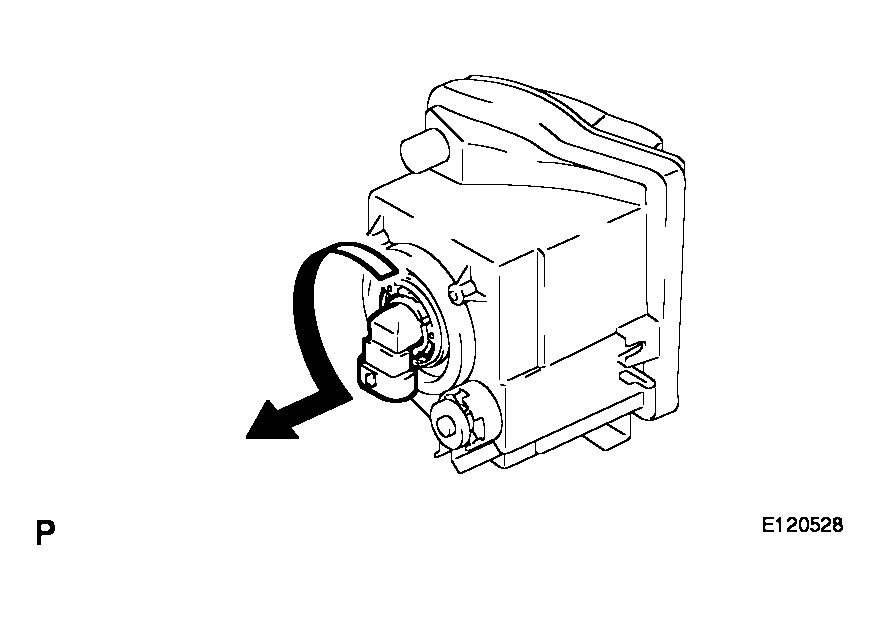

    Fig 1: Identifying Fog Light Bulb
    G04049533Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
