Circuit Diagrams

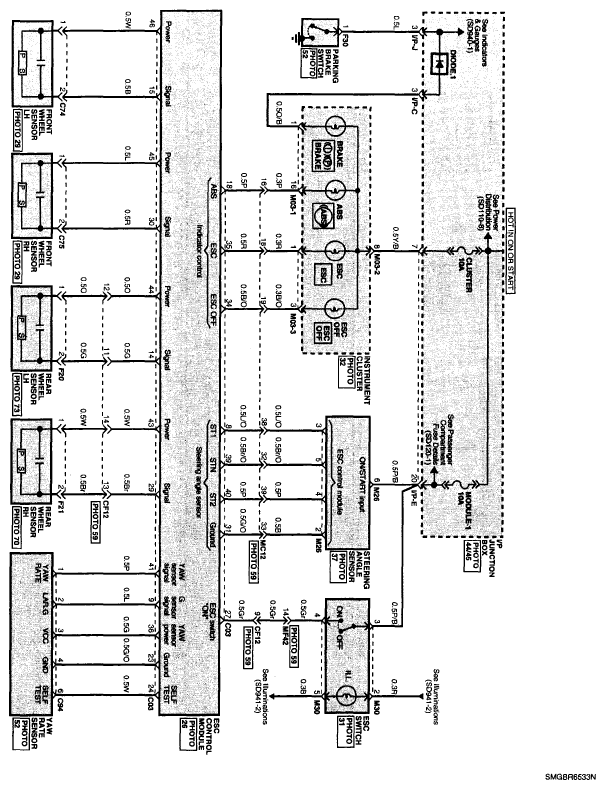

Fig 1: Circuit Diagram - ESC (1)

G04805969

Courtesy of KIA MOTORS AMERICA, INC.

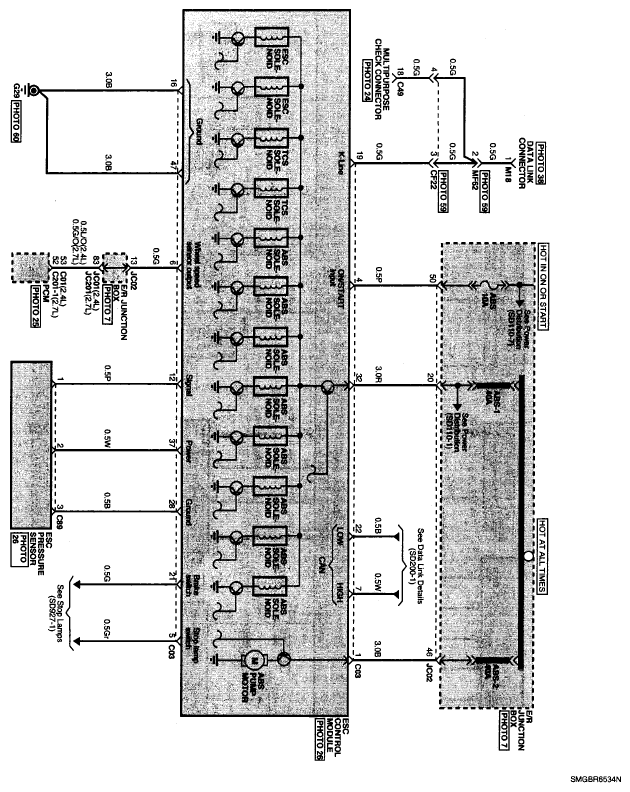

Fig 2: Circuit Diagram - ESC (2)

G04805970

Courtesy of KIA MOTORS AMERICA, INC.
