Component Inspection

Visual Inspection
1. Check that MAFS is damaged, contaminated or deformed.
2. Has a problem been found ?
  YES
  - Repair or replace as necessary and then go to "VERIFICATION OF VEHICLE REPAIR " procedure.
  NO
  - Go to 2"Check MAFS" as follows
Check MAFS
1. IG "OFF" and install a scan tool
2. ENG "ON" and monitor "MAFS" data on the service data.
3. Monitor signal waveform at terminal 1 of MAFS with scan tool.

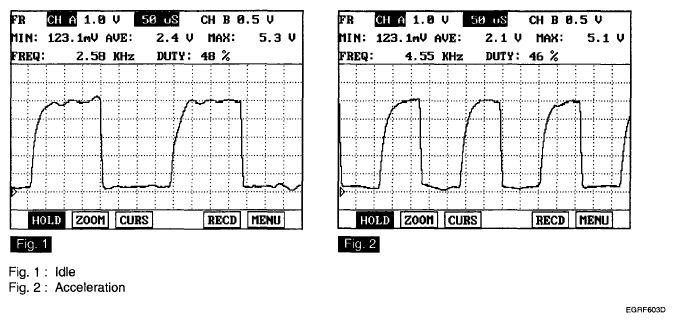

  Specification :Signal waveform will be displayed as follows. (Be aware that the signal of MAFS is not voltage display but frequency display.)

  Fig 1: Waveform Signal Graph
  Courtesy of KIA MOTORS AMERICA, INC.
4. Are both service data and signalwave form displayed correctly ?
  YES
  - Substitute with a known - good PCM and check for proper operation. If the problem is corrected, replace PCM and go to "VERIFICATION OF VEHICLE REPAIR " procedure.
  NOTE: There is a memory reset function on scan tool that can erase optional parts automatically detected and memorized by PCM.
  Before or after testing PCM on the vehicle, use this function before reusing the PCM

  NO
  - Substitute with a known - good MAFS and check for proper operation. If the problem is corrected, replace MAFS and go to "VERIFICATION OF VEHICLE REPAIR " procedure.
