Fuse Index Information: Notes

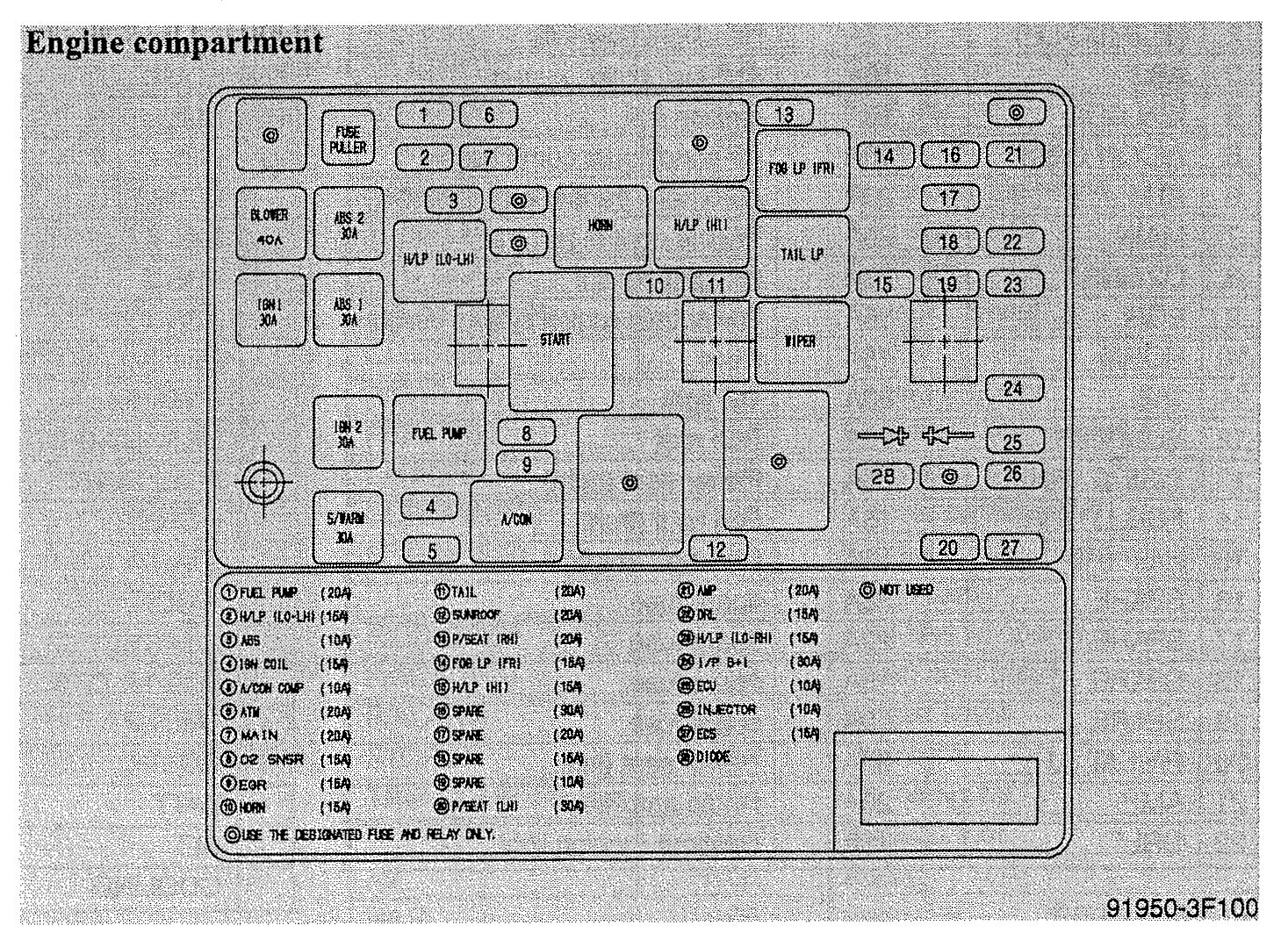

For fuse locations within the engine compartment fuse/relay box, refer to illustration below.
Inside the fuse/relay box covers, you can find the fuse/relay label describing fuse/relay name and capacity.
Use designated fuses only.
IDENTIFYING FUSES (ENGINE COMPARTMENT FUSE/RELAY BOX)
| Description | Fuse Rating | Protected Components | |
|---|---|---|---|
| 1 | FUEL PUMP | 20A | Fuel pump |
| 2 | H/LP (LO-LH) | 15A | Headlight (low-left) |
| 3 | ABS | 10A | Anti-lock brake system |
| 4 | IGN COIL | 15A | Ignition coil |
| 5 | A/CON COMP | 10A | Air-conditioner compressor |
| 6 | ATM | 20A | Automatic transaxle control relay |
| 7 | MAIN | 20A | Engine control unit relay |
| 8 | O2 SNSR | 15A | Oxygen sensor |
| 9 | EGR | 15A | Power train control system sensors |
| 10 | HORN | 15A | Horn |
| 11 | TAIL | 20A | Tail light |
| 12 | SUNROOF | 20A | Sun roof |
| 13 | P/SEAT (RH) | 20A | Power seat (right) |
| 14 | FOG LP (FR) | 15A | Fog light (front) |
| 15 | H/LP (HI) | 15A | Headlight (high) |
| 16 | SPARE | 30A | Spare fuse |
| 17 | SPARE | 20A | Spare fuse |
| 18 | SPARE | 15A | Spare fuse |
| 19 | SPARE | 10A | Spare fuse |
| 20 | P/SEAT (LH) | 30A | Power seat (left) |
| 21 | AMP | 20A | Radio amplifier |
| 22 | DRL* | 15A | Daytime running light |
| 23 | H/LP(LO-RH) | 15A | Headlight (low beam-right) |
| 24 | I/P B+ | 30A | All electrical system |
| 25 | ECU | 10A | Engine control unit |
| 26 | INJECTOR | 10A | Injector |
| 27 | ECS | 15A | Electronic control suspension |
| BLOWER | 40A | Blower motor | |
| IGN 1 | 30A | Ignition switch | |
| ABS 2 | 30A | Anti-lock brake system | |
| ABS 1 | 30A | Anti-lock brake system | |
| IGN 2 | 30A | Ignition switch | |
| S/WARMERS | 30A | Seat warmer | |
| *: If equipped. | |||
