Schematic Diagram

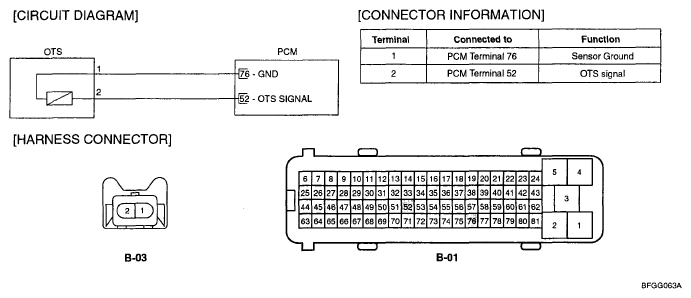

Fig 1: Engine Oil Temperature Sensor Schematic Diagram

G04864375

Courtesy of KIA MOTORS AMERICA, INC.
