Schematic Diagram

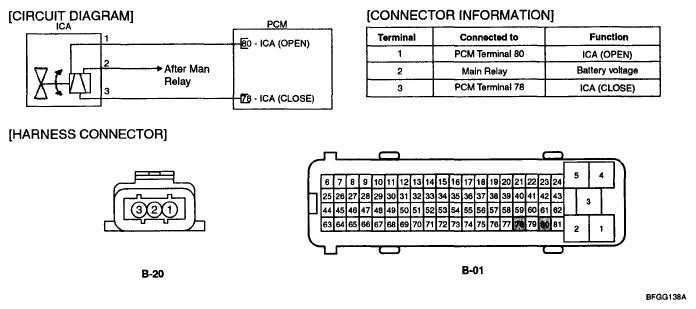

Fig 1: Idle Air Control System Schematic Diagram

G04864454

Courtesy of KIA MOTORS AMERICA, INC.
