Home >> Kia >> 2006 >> Sorento EX, 4WD, Part Time >> Repair and Diagnosis >> Engine Performance >> System >> DTC Troubleshooting Procedures (2 Of 2) >> DTC Troubleshooting Procedures >> DTC P0463: Fuel Level Sensor A Circuit High Input >> Schematic Diagram

Schematic Diagram

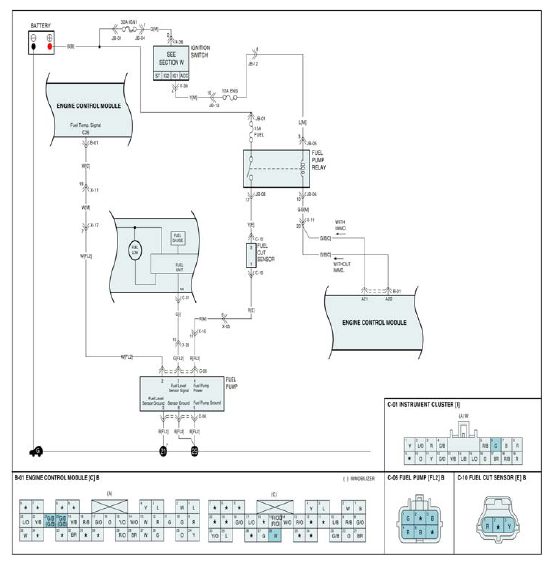

Fig 1: FLS Circuit Diagram (High Input)

G07346404

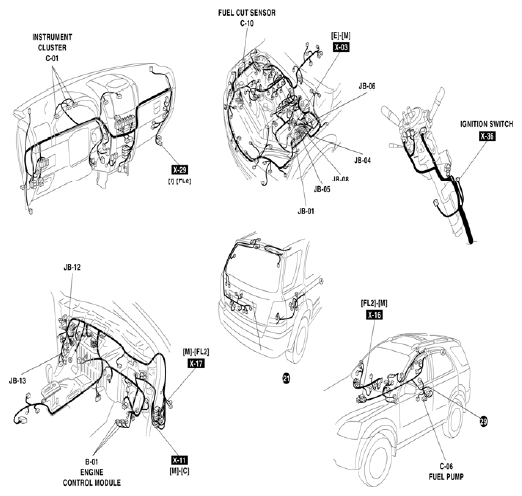

Fig 2: Identifying FLS Components Location (High Input)

G07346405
