Home >> Kia >> 2006 >> Sorento EX, 4WD, Part Time >> Repair and Diagnosis >> Engine Performance >> System >> DTC Troubleshooting Procedures (2 Of 2) >> DTC Troubleshooting Procedures >> DTC P0462: Fuel Level Sensor A Circuit Low Input >> Schematic Diagram

Schematic Diagram

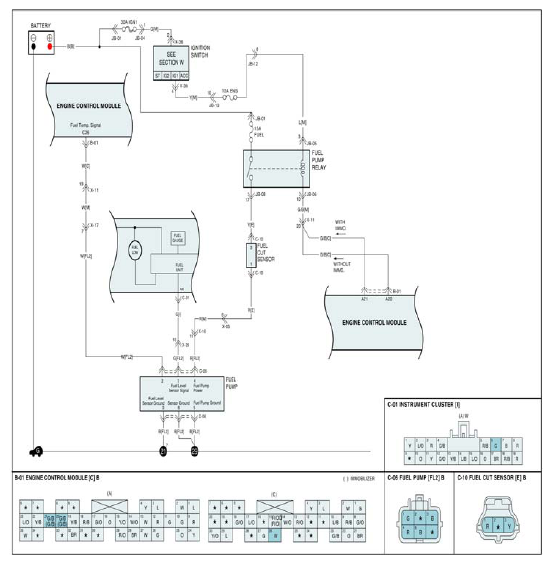

Fig 1: Fuel Level Sensor Circuit Diagram (Low Input)

G07346397

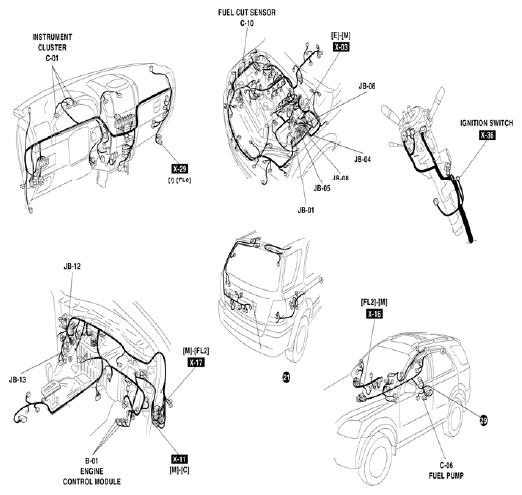

Fig 2: Identifying Fuel Level Sensor Components Location (Low Input)

G07346398
