Home >> Kia >> 2006 >> Sorento EX, 4WD, Part Time >> Repair and Diagnosis >> Engine Performance >> System >> DTC Troubleshooting Procedures (2 Of 2) >> DTC Troubleshooting Procedures >> DTC P0460: Fuel Level Sensor Circuit >> Schematic Diagram

Schematic Diagram

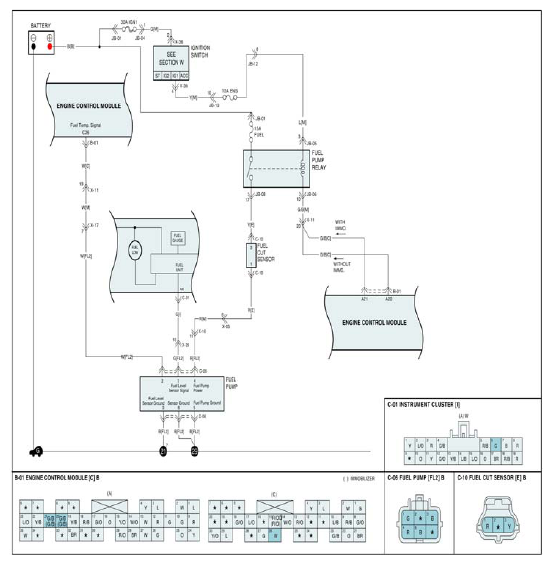

Fig 1: FLS Circuit Diagram

G07346389

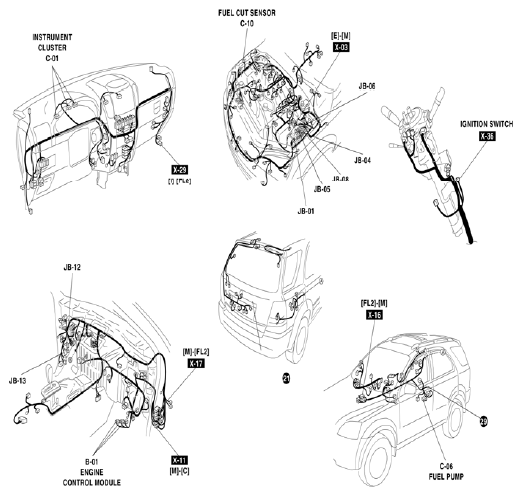

Fig 2: Identifying FLS Component Location

G07346390
