Schematic Diagram

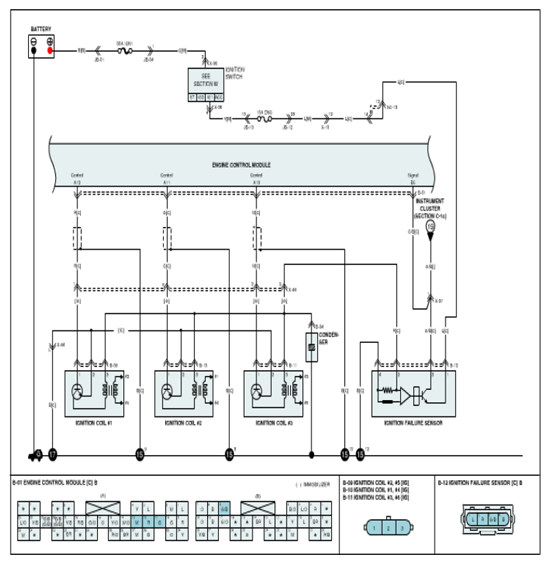

Fig 1: IFS Circuit Diagram

G07346270

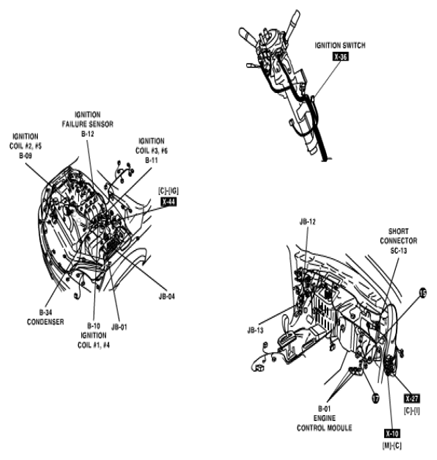

Fig 2: Identifying IFS Component Location

G07346271
