Hi-Scan (Pro) Check

  1. Turn the ignition "OFF".
  2. Connect the Hi-scan to the data link connector located underneath low crash pad panel.
  3. Turn the ignition "ON".
  4. Use the Hi-scan to check the self-diagnosis codes.
  5. After completion of the repair of correction of the problems, turn the ignition switch "ON"; then erase the stored faults codes using the clear key.
  6. Disconnect the Hi-scan.

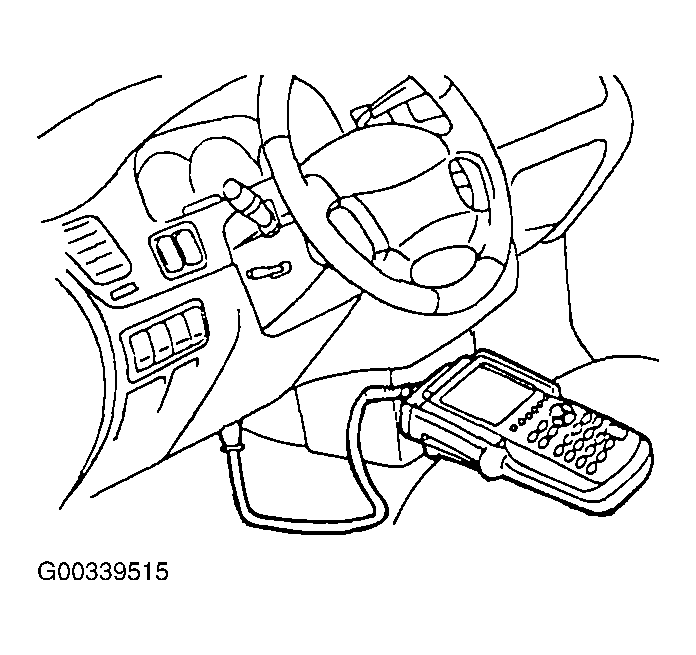

Fig 1: Connect Hi-Scan To Data Link Connector
G00339515Courtesy of KIA MOTORS AMERICA, INC.
Fig 2: Data Link Connector
G00339516Courtesy of KIA MOTORS AMERICA, INC.
