Power Circuit Inspection

Check power to CCV
1. Engine "OFF"
2. Disconnect CCV connector.
3. Ignition "ON" & Engine "OFF"
4. Measure voltage between terminal "1" of CCV harness connector and chassis ground.
  Specification: B+

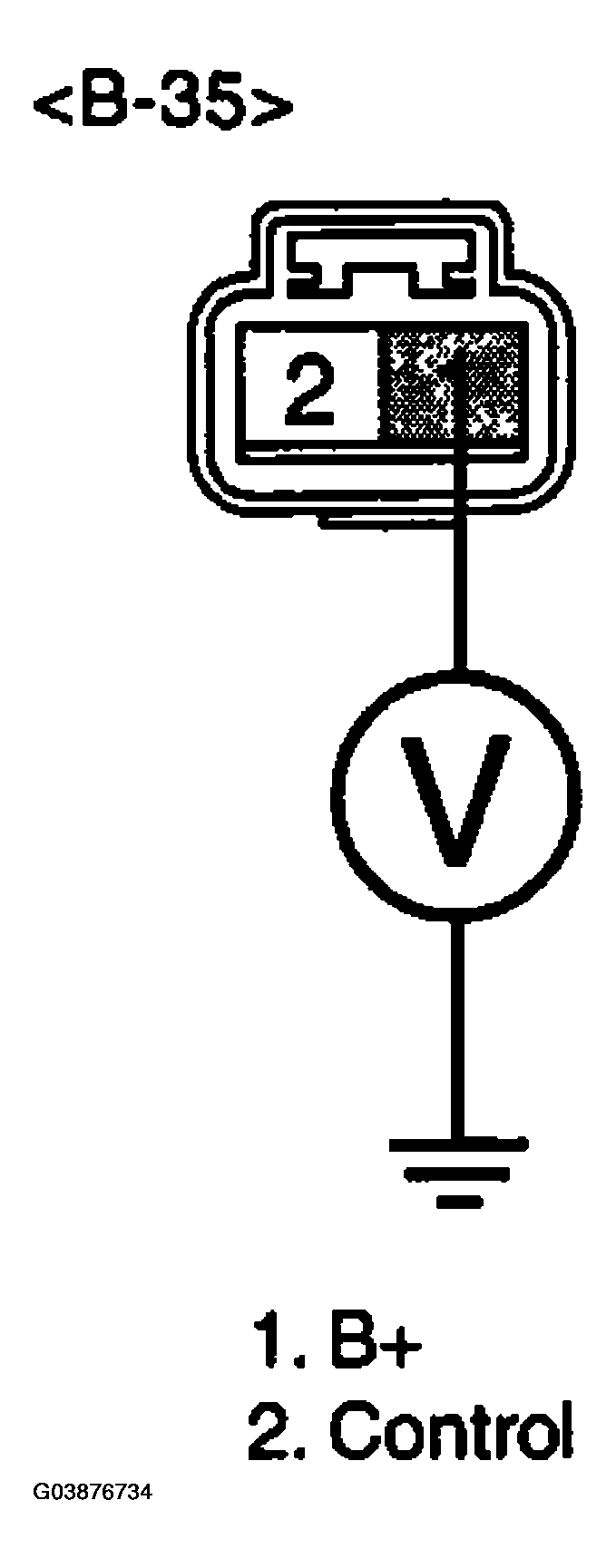

  Fig 1: Measuring Voltage Between Terminal "1" Of CCV Harness Connector And Chassis Ground
  Courtesy of KIA MOTORS AMERICA, INC.
5. Is the measured voltage within specifications?
  Yes
  - Go to "CONTROL CIRCUIT INSPECTION " procedure.
  NO
  - Check open or short to ground in harenss between control relay and CCV.
  - Repair or replace as necessary and then, go to "VERIFICATION OF VEHICLE REPAIR " procedure.
