TCS Switch Error

Fig 1: DTC C1503 Trouble Chart (1 Of 3)
G00325375Courtesy of KIA MOTORS AMERICA, INC.
Fig 2: DTC C1503 Trouble Chart (2 Of 3)
G00325376Courtesy of KIA MOTORS AMERICA, INC.

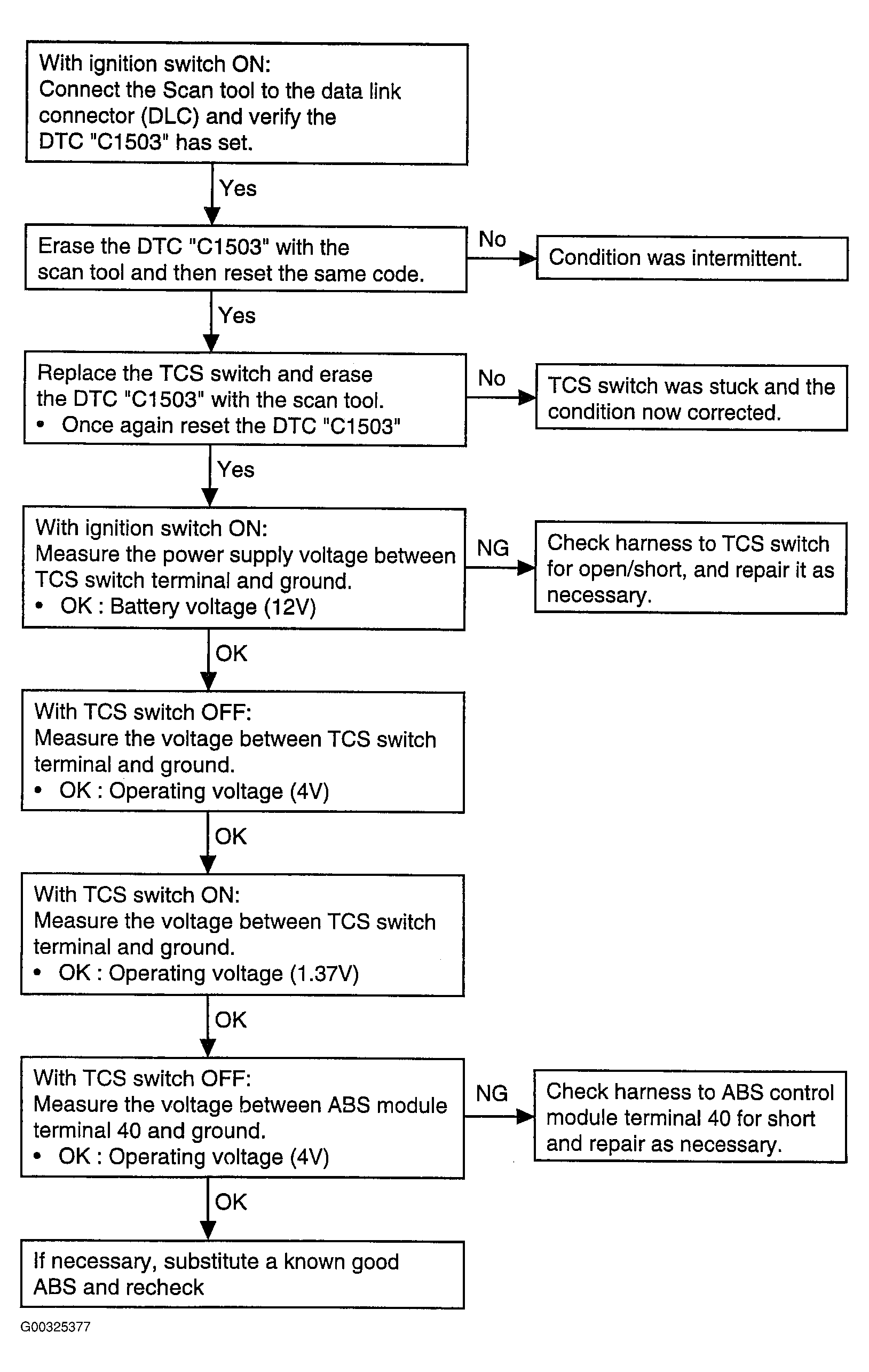

Fig 3: DTC C1503 Trouble Chart (3 Of 3)
G00325377Courtesy of KIA MOTORS AMERICA, INC.
