DTC P1529: TCM Request For Mil - On: DTC Detecting Condition

  1. DTC Description the ECM illuminates the MIL and sets DTC P1529 if TCM requests "MIL ON" via CAN.

    This error code determines diagnostic failure at TCM side.

  2. Conditions for Setting the DTC

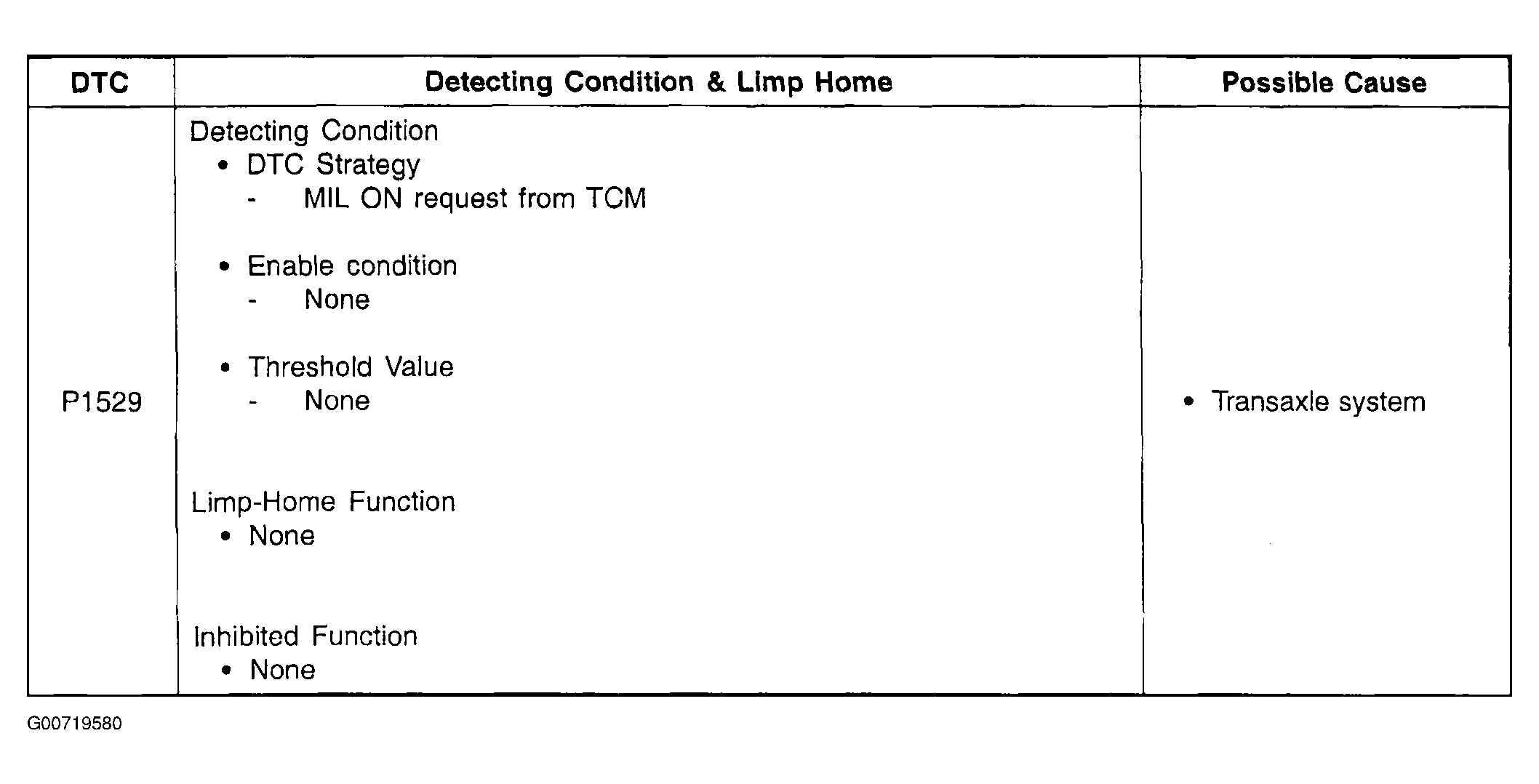

    Fig 1: DTC P1529 Condition Chart
    G00719580Courtesy of KIA MOTORS AMERICA, INC.
