DTC P0103: Mass Air Flow Circuit High Input: DTC Detecting Condition

  1. DTC Description, ECM sets DTC P0103 if the ECM detects signal voltage higher than the possible range of a properly operating MAF sensor.
  2. Conditions for Setting the DTC

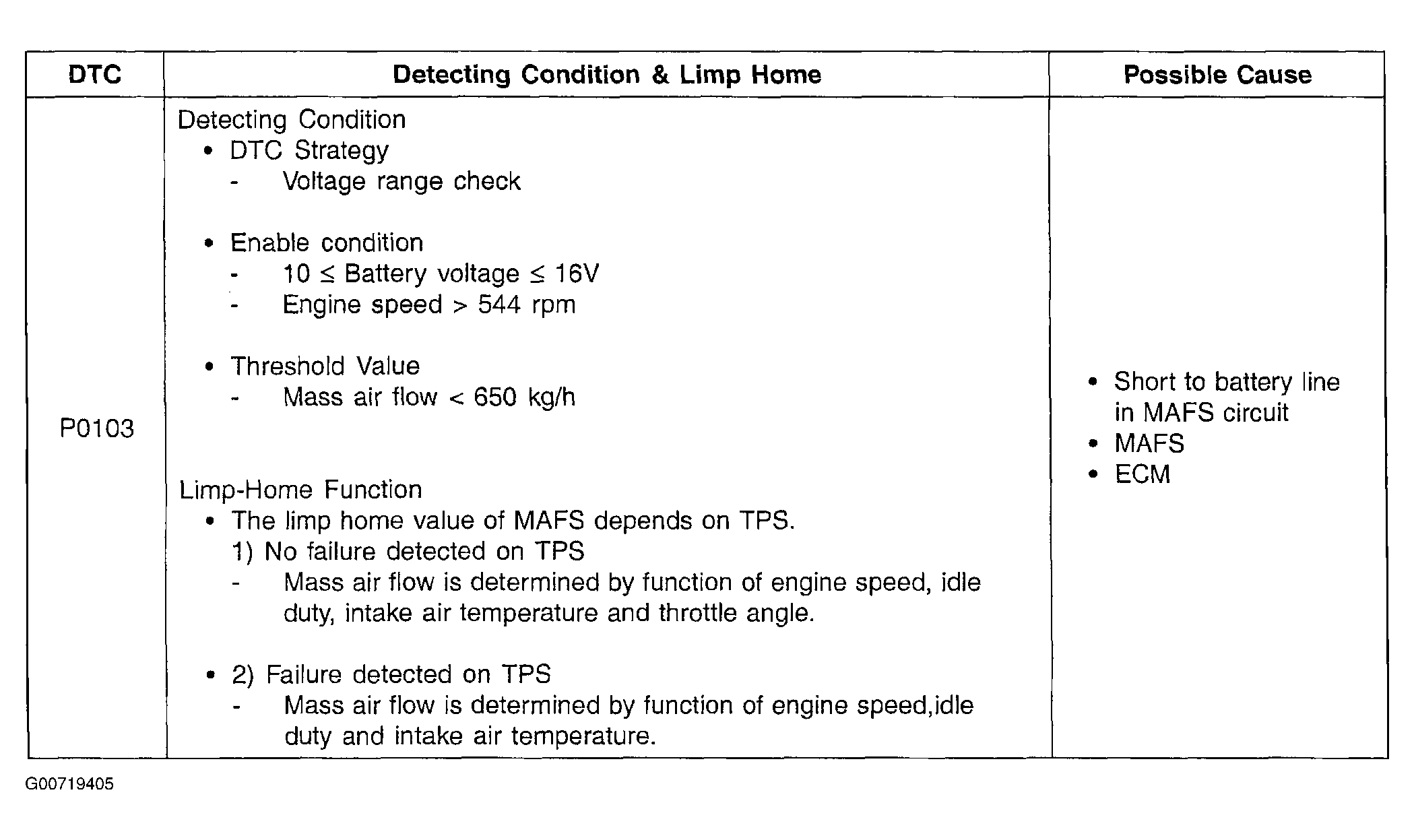

    Fig 1: DTC P0103 Condition Chart
    G00719405Courtesy of KIA MOTORS AMERICA, INC.
