DTC P0448: EVAP Emission Control System Vent Circuit Shorted: DTC Detecting Condition

  1. DTC Description

    ECM sets DTC P0448 if the ECM detects that the CCV control line is short to ground or short to battery line.

  2. Conditions for Setting the DTC

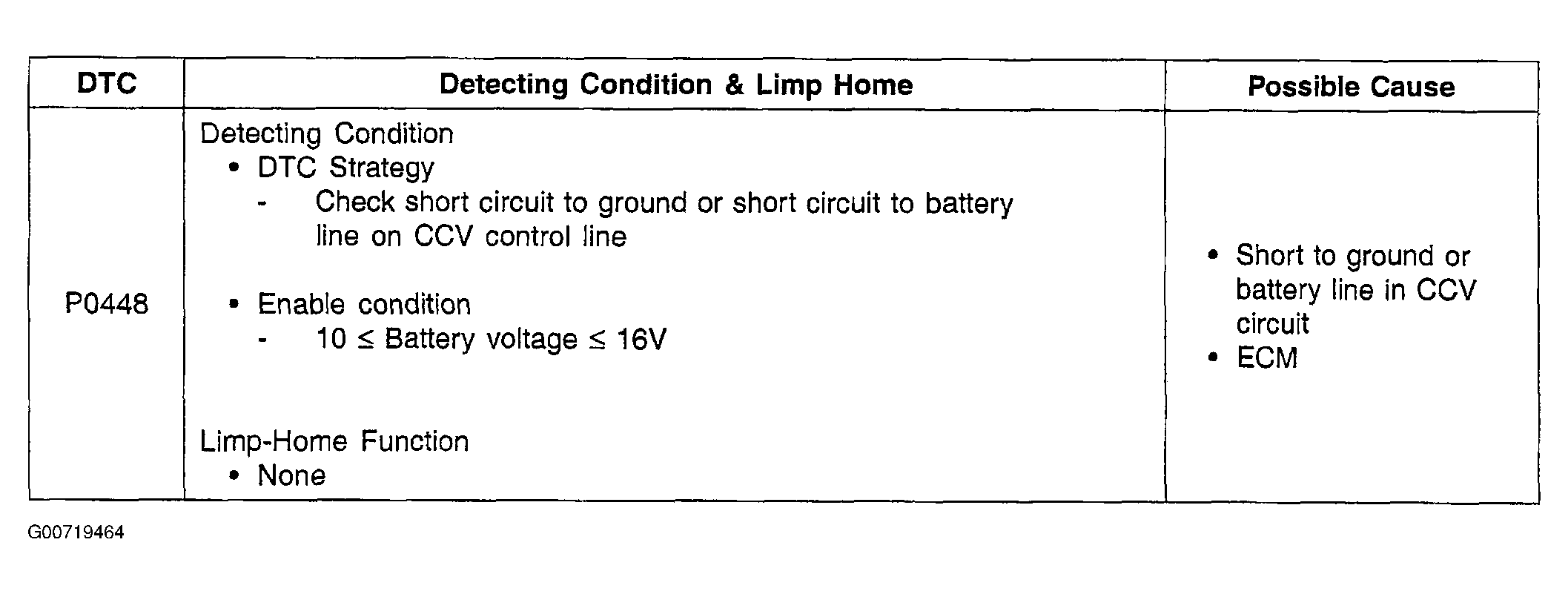

    Fig 1: DTC P0448 Condition Chart
    G00719464Courtesy of KIA MOTORS AMERICA, INC.
