A/T Control Relay Connector End View

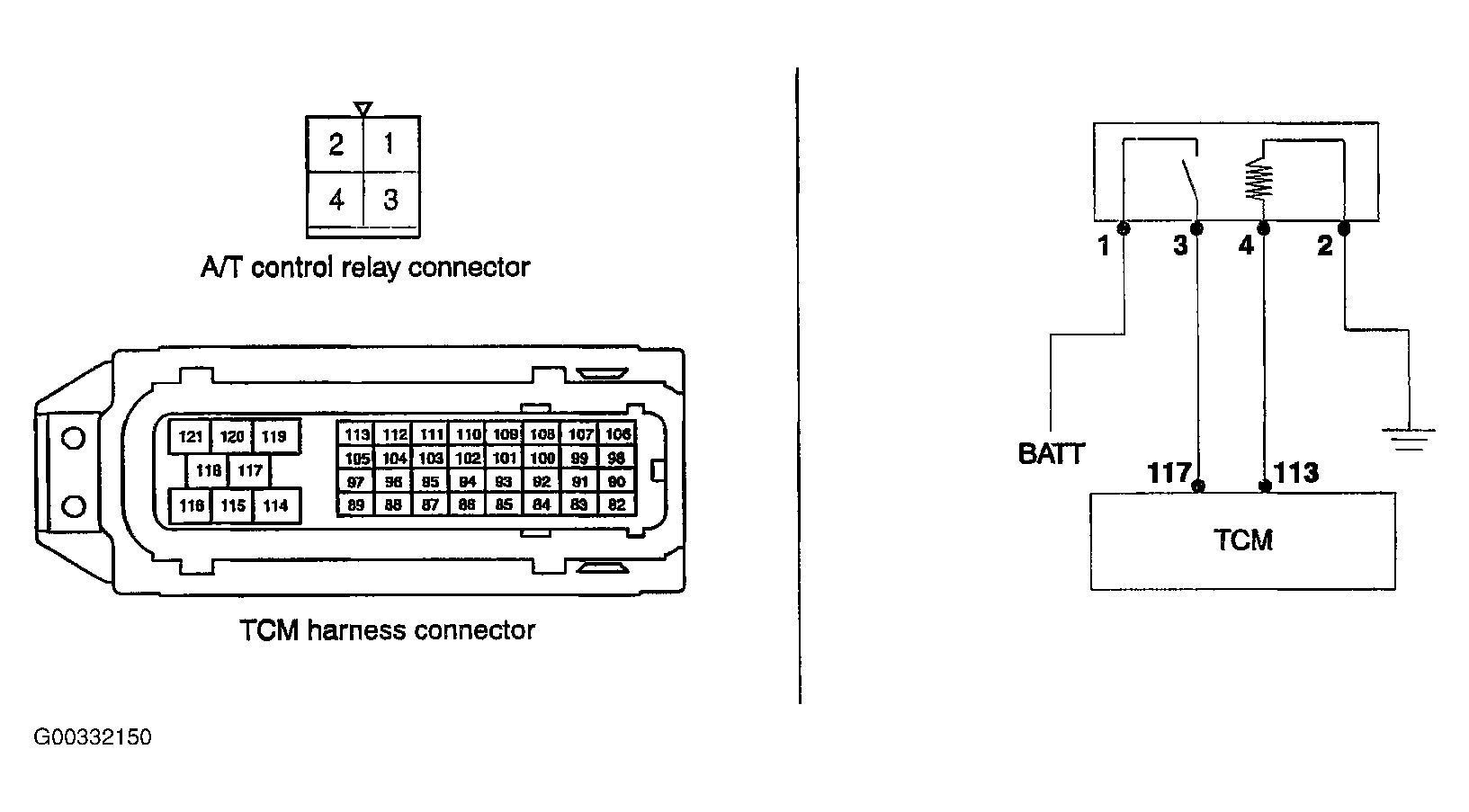

Fig 1: A/T Control Relay Connector End View

G00332150

Courtesy of KIA MOTORS AMERICA, INC.
