Snap Ring Location And Part Numbers: Notes

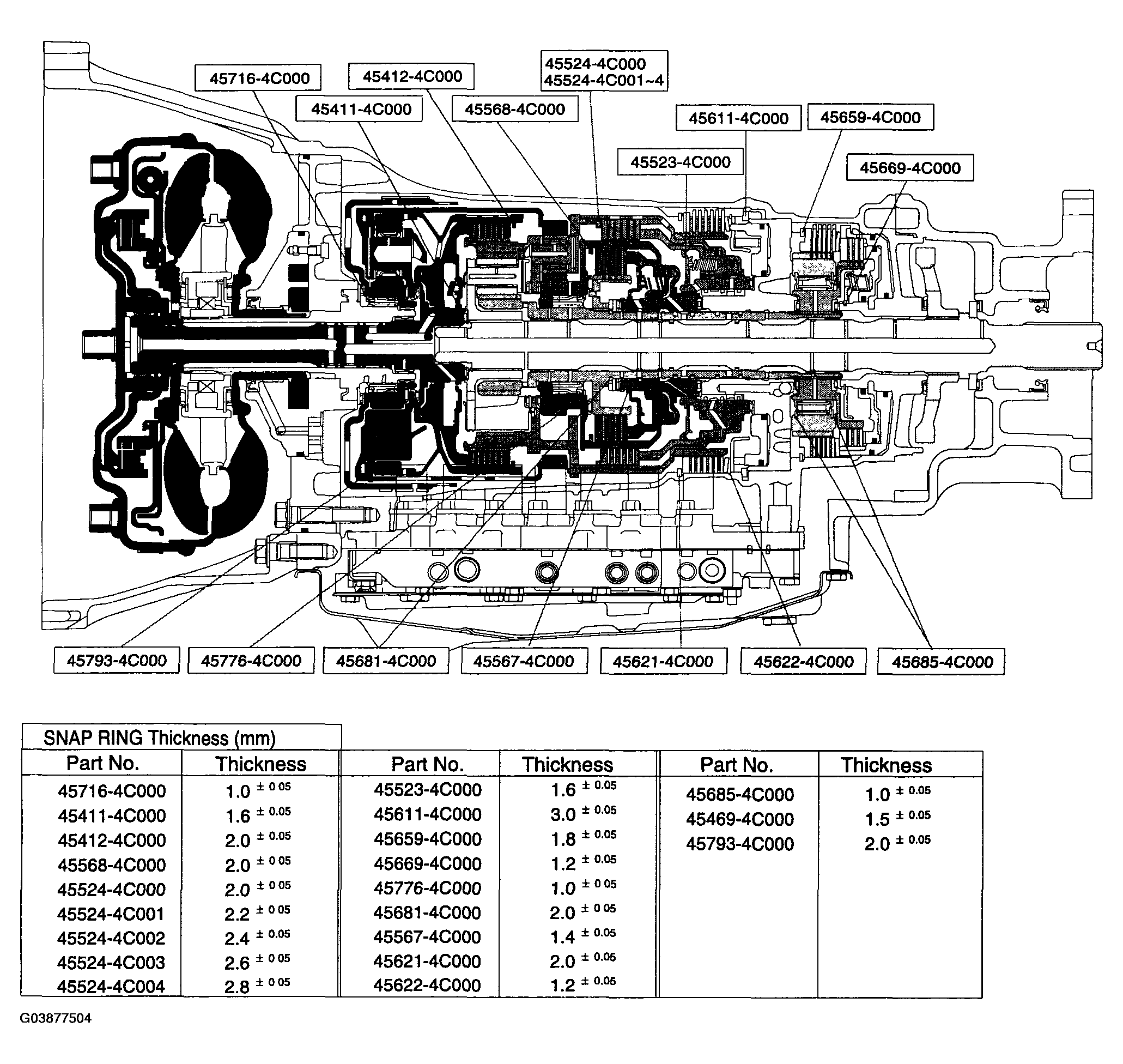

Fig 1: Identifying Snap Ring Location And Part Numbers

G03877504

Courtesy of KIA MOTORS AMERICA, INC.
