Sorento EX, 4WD, Part Time
>>
Repair and Diagnosis
>>
Engine Performance
>>
System
>>
Fuel System & Fault Isolation
>>
MFI Control System
>>
Mass Air Flow (MAF) Sensor & Intake Air Temperature Sensor (ATS)
>>
Harness Inspection Procedures
Harness Inspection Procedures

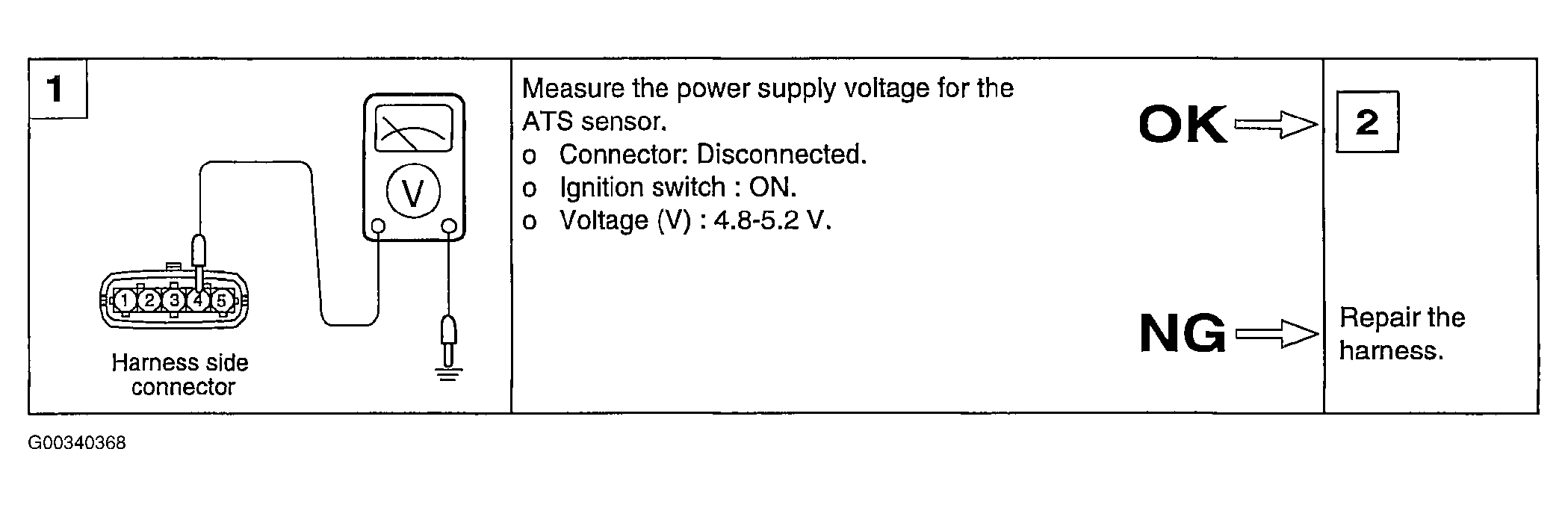

Fig 1: MAF Sensor & ATS Harness Inspection Procedure No. 1
Courtesy of KIA MOTORS AMERICA, INC.

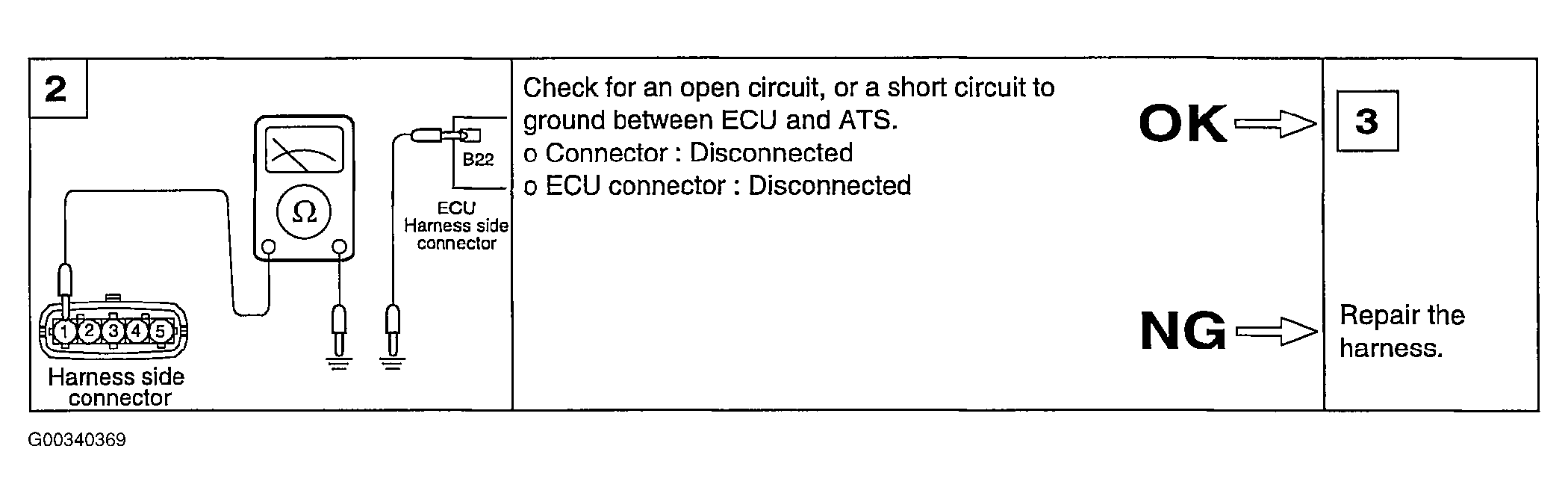

Fig 2: MAF Sensor & ATS Harness Inspection Procedure No. 2
Courtesy of KIA MOTORS AMERICA, INC.

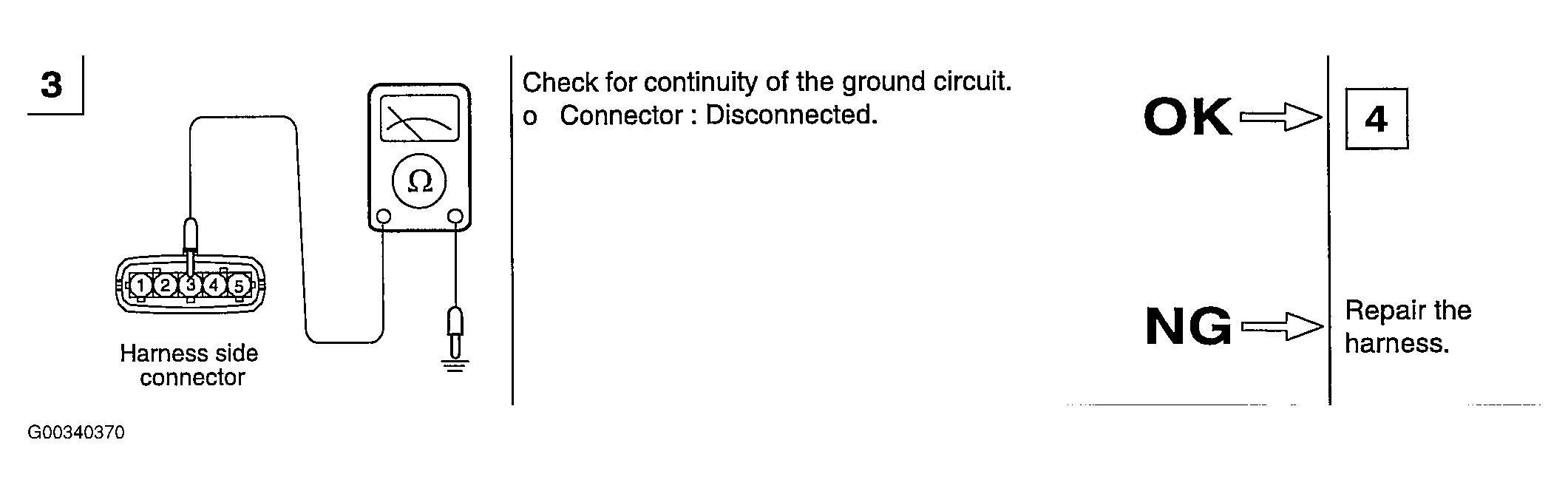

Fig 3: MAF Sensor & ATS Harness Inspection Procedure No. 3
Courtesy of KIA MOTORS AMERICA, INC.

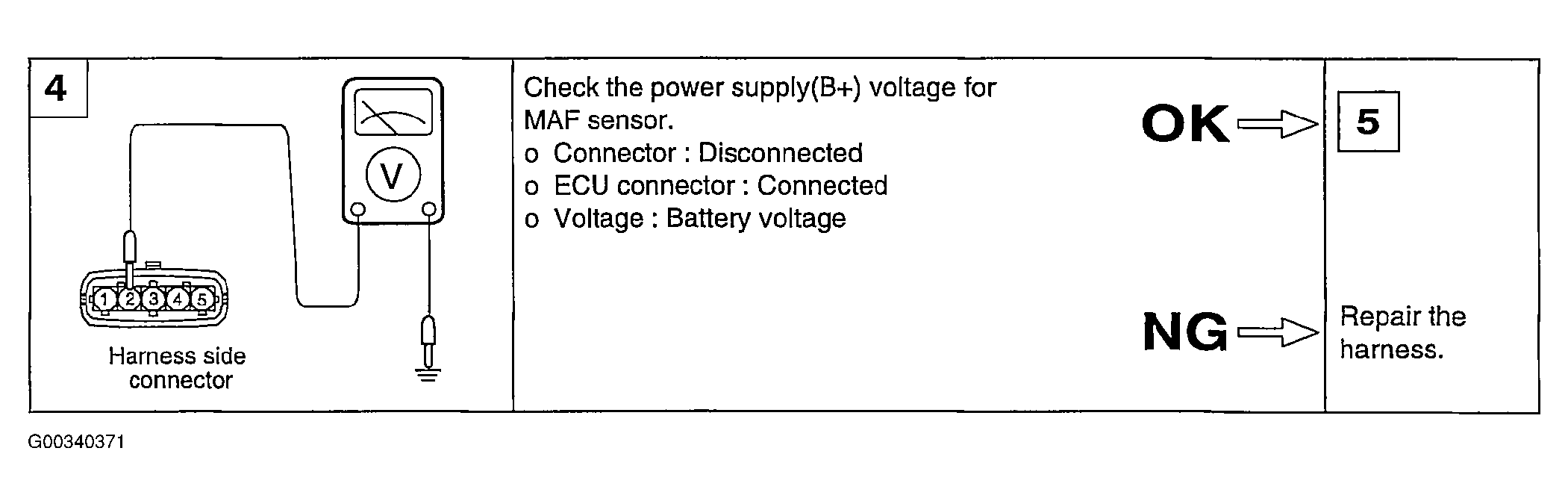

Fig 4: MAF Sensor & ATS Harness Inspection Procedure No. 4
Courtesy of KIA MOTORS AMERICA, INC.

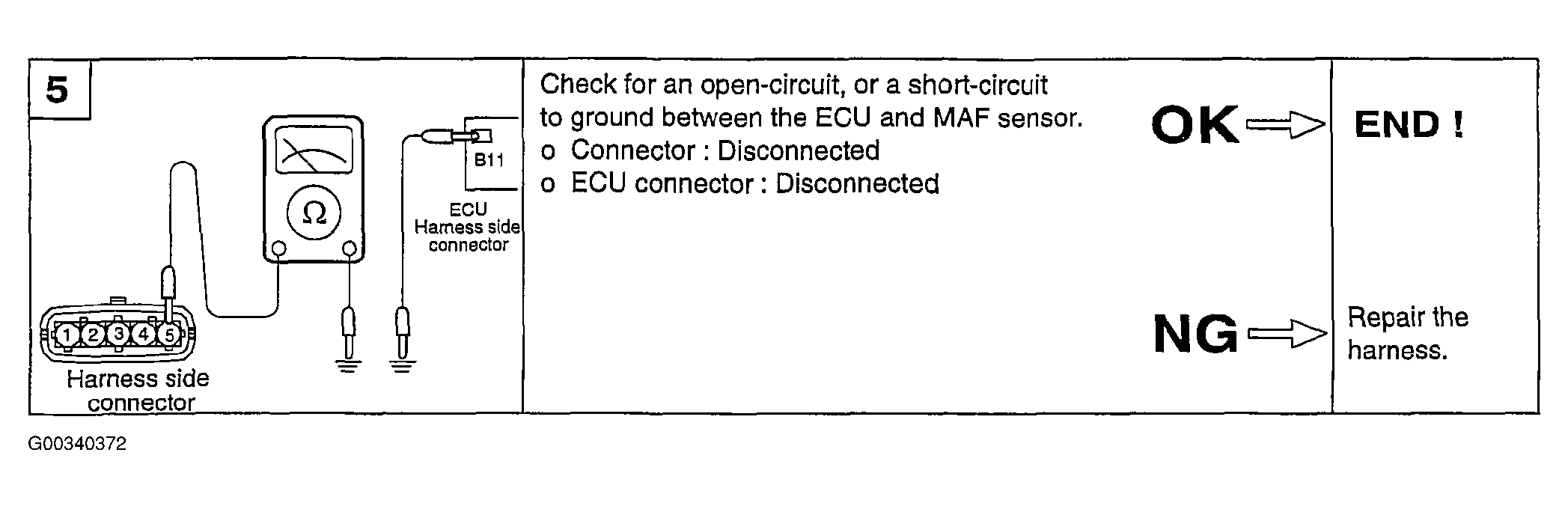

Fig 5: MAF Sensor & ATS Harness Inspection Procedure No. 5
Courtesy of KIA MOTORS AMERICA, INC.
