Harness Inspection Procedures

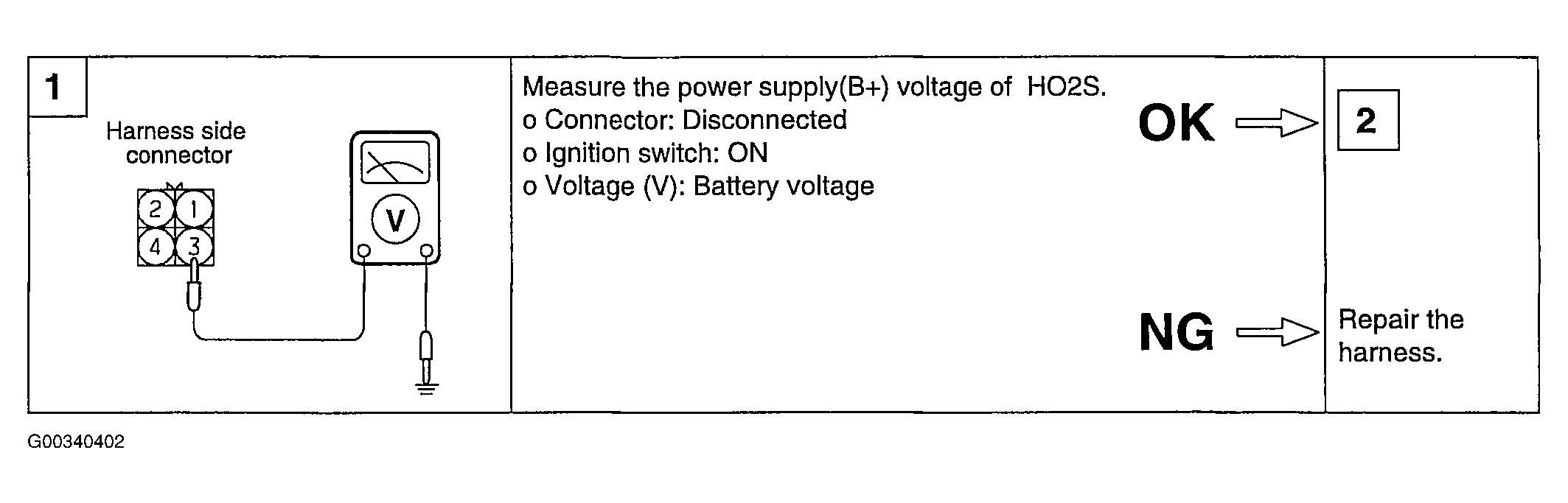

Fig 1: HO2S Harness Inspection Procedure No. 1
G00340402Courtesy of KIA MOTORS AMERICA, INC.
Fig 2: HO2S Harness Inspection Procedure No. 2
G00340403Courtesy of KIA MOTORS AMERICA, INC.

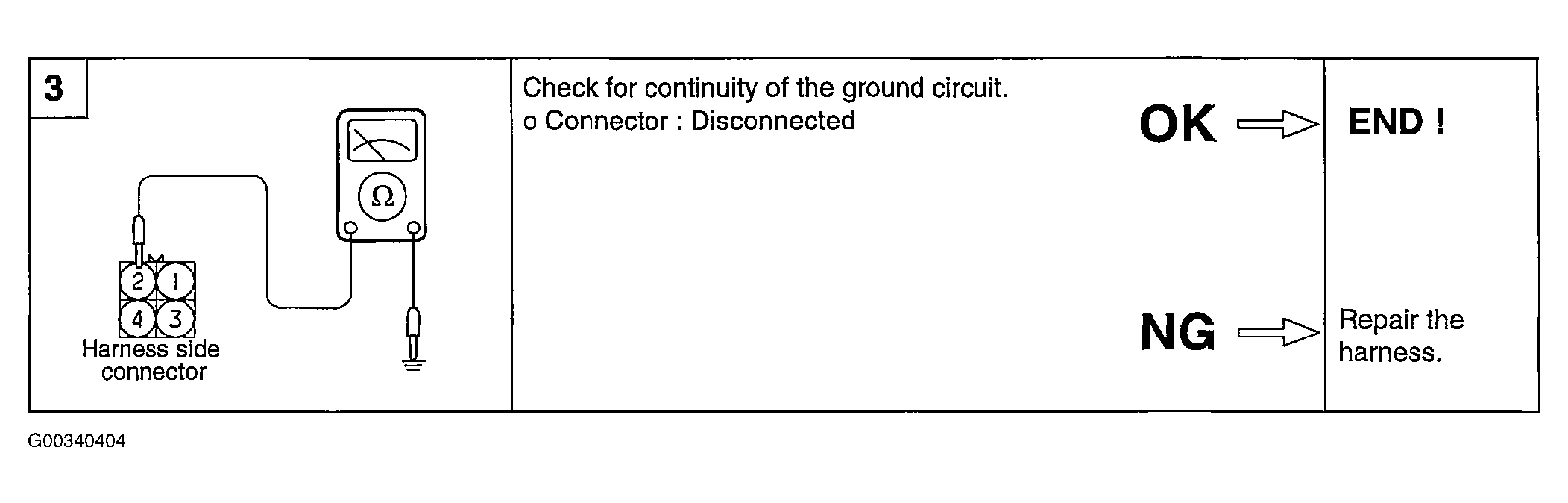

Fig 3: HO2S Harness Inspection Procedure No. 3
G00340404Courtesy of KIA MOTORS AMERICA, INC.
